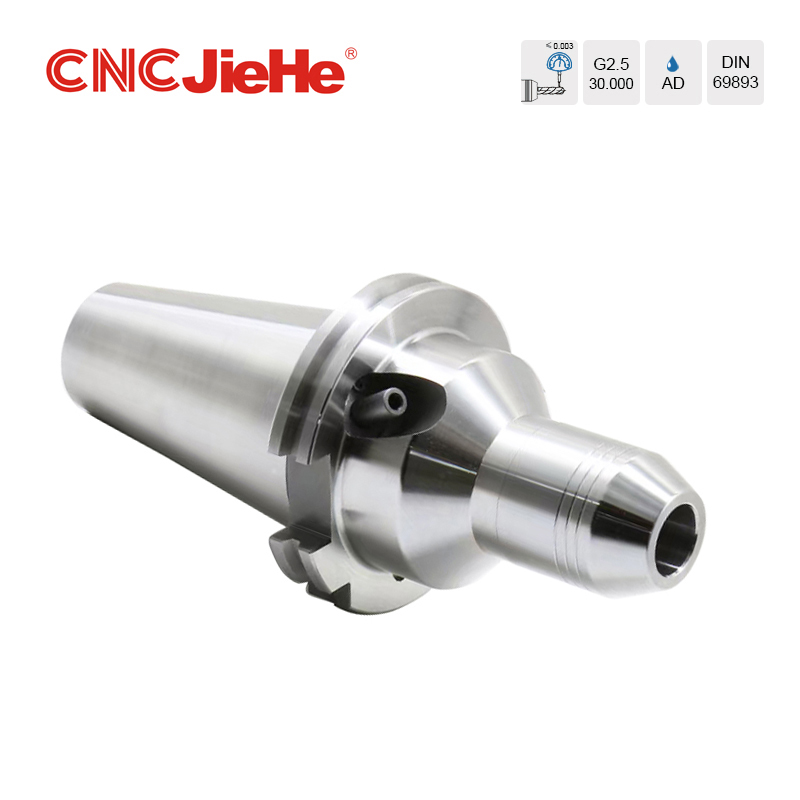

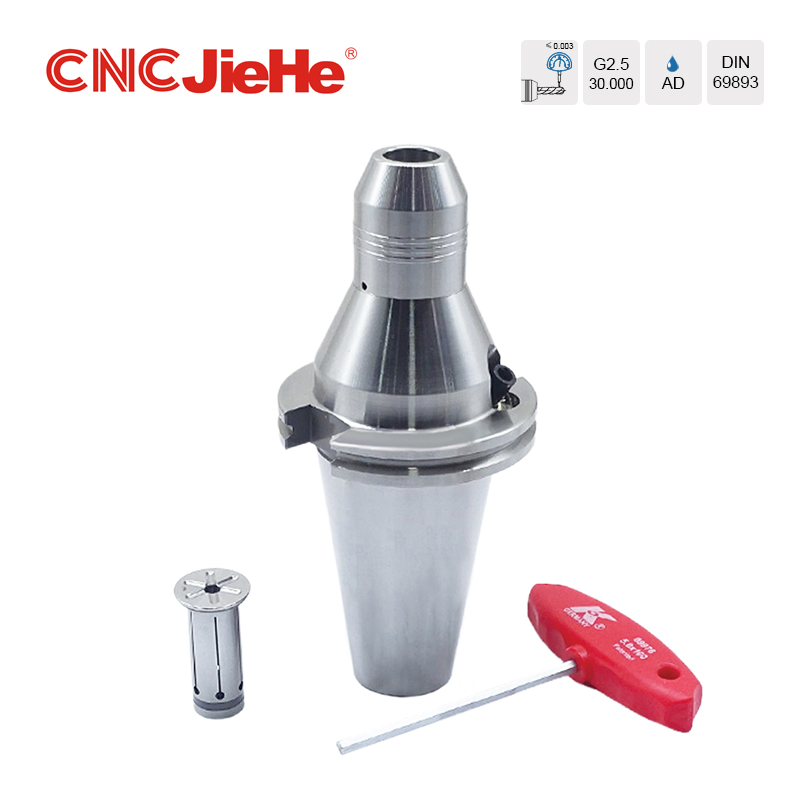

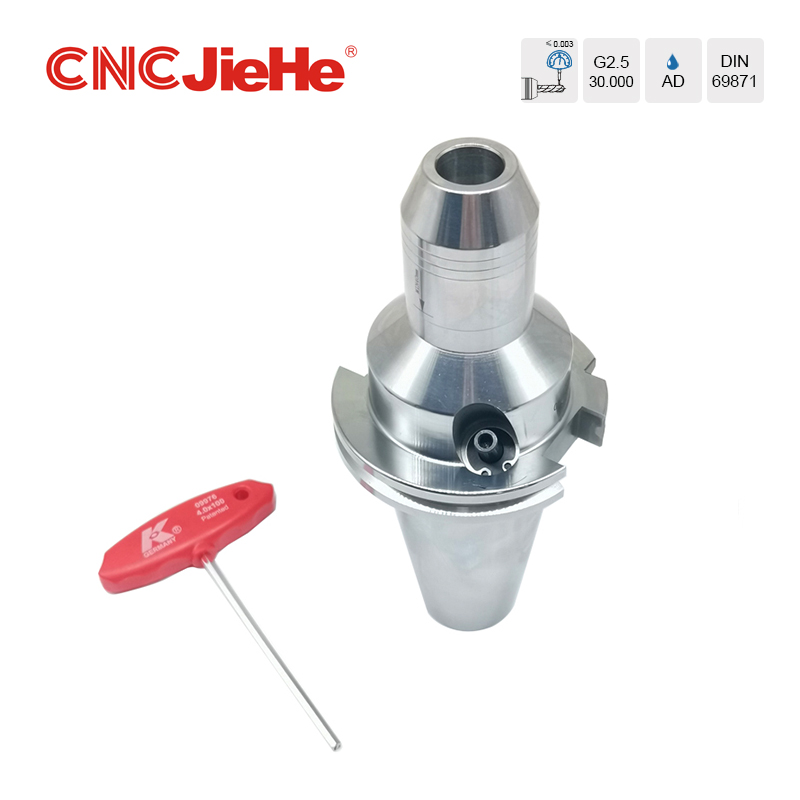

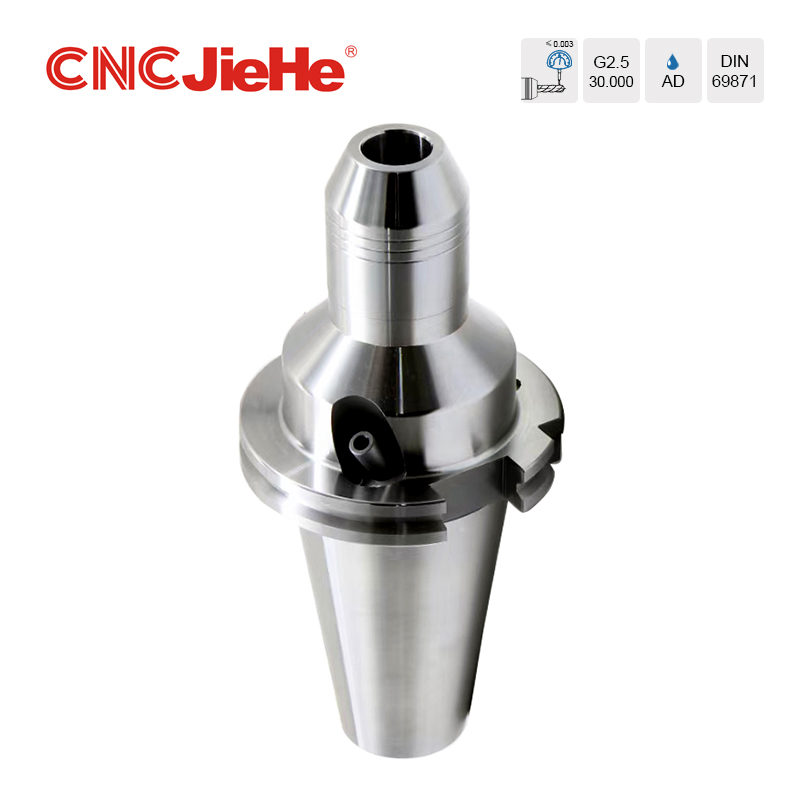

SK Hydraulic Chuck-Grinding Holder

Product Description

The Hydraulic chuck will provide the best grinding results for the tool grinder. Small radial runout and superb repetition accuracy, so that the grinding process of uniform processing, grinding tool after high precision processing, so that the cutting edge of the best dimensional accuracy.

This hydraulic tool holder is mainly used for machining and repairing tools with a repetition accuracy of 0.003mm at 4 × D.The high precision grinding tool is beneficial to increase the service life of the tool, improve the surface roughness of the machined workpiece, and improve the cutting speed and feed speed. In order to achieve cutting tool saving, improve production effic-iency. The unique shock absorption function of the oil chamber in the hydraulic device can reduce the vibration generated in the grinding process, so that the grinding accuracy and surface of the tool are more perfect. This kind of holder clamping operation is simple, saving clamping time.

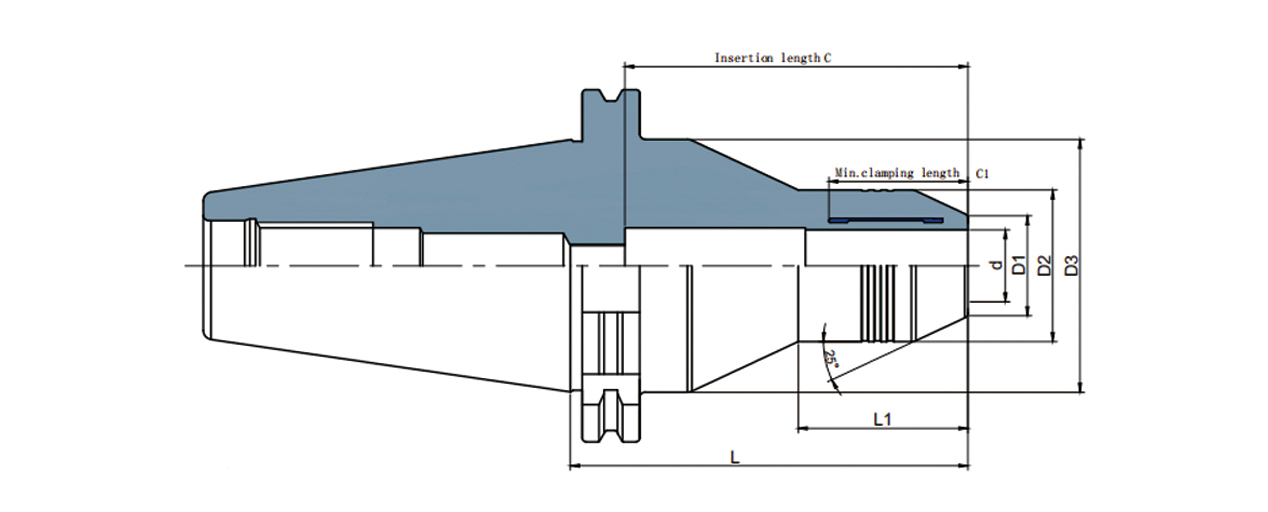

Product Schematic

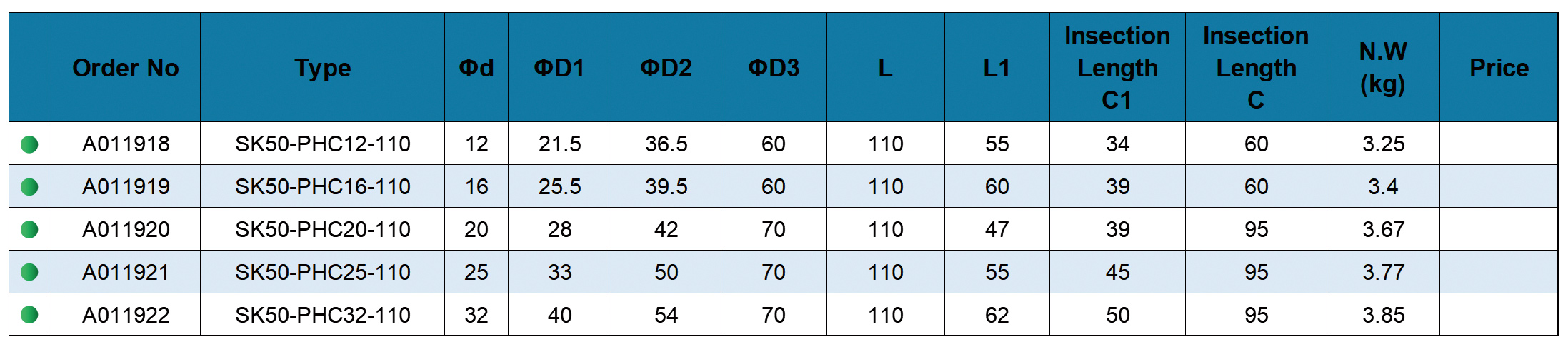

Product Parameters

Product System

The SK Hydraulic Chuck - Grinding Holder operates based on a hydraulic clamping system. The actuation screw B drives the actuation piston, which presses the hydraulic fluid into the chamber system. This causes the expansion sleeve to tightly grip the tool shank. The length adjustment screw E allows for quick and easy presetting of the tool position. The toolholder body has a groove against the tool shank. During the clamping process, the tool shank is first centered, and then the expansion sleeve expands to ensure a secure hold. The high clamping pressure displaces oil, grease, or lubricant residues into the groove, keeping the surfaces dry and reducing tool wear. The hydraulic fluid in the chamber system also provides a damping effect, enhancing the stability of the clamped tool during grinding operations.

How to Use Hydraulic Chuck

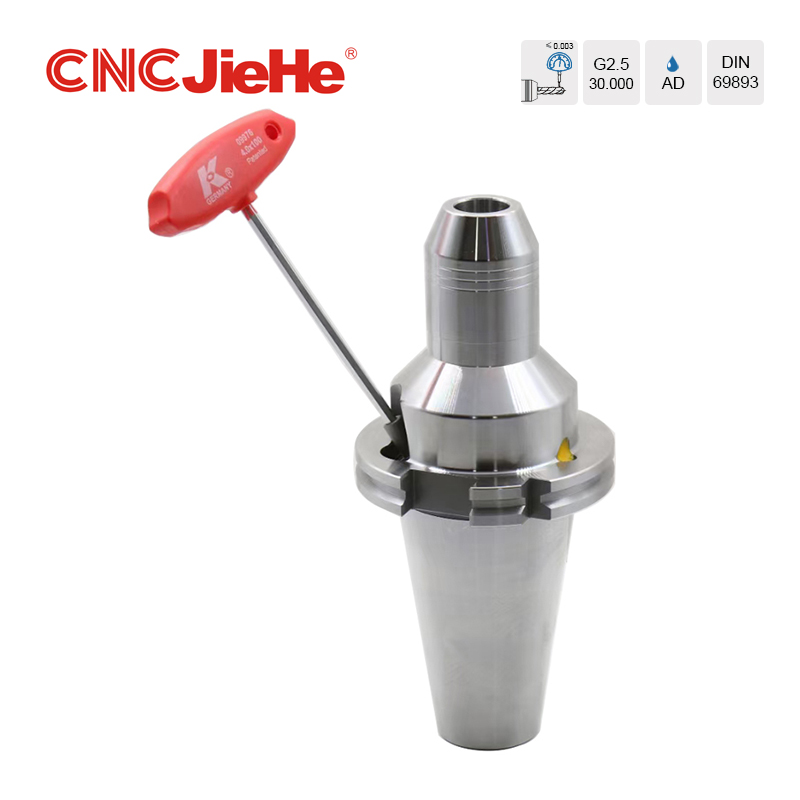

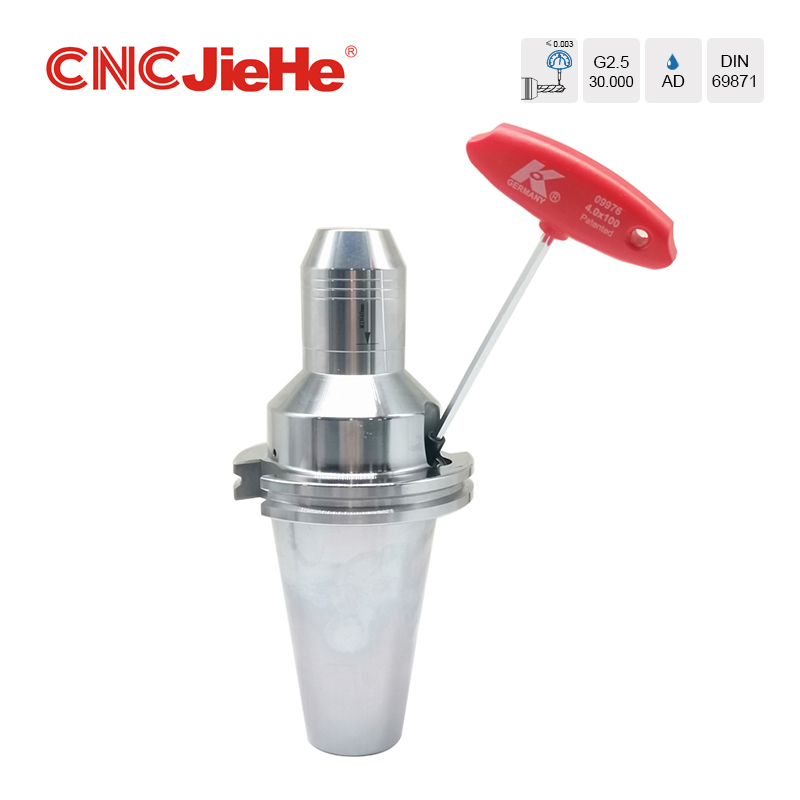

To ensure optimal performance and longevity of the hydraulic chuck, always clean the inner hole and outer diameter of the tool holder before use, removing any moisture or oil. Avoid tightening the chuck before inserting the tool, and loosen the pressure screw if the chuck has been unused for an extended period. Ensure the tool insertion length meets the specified minimum to prevent issues like deformation or slippage. Always tighten the pressure screw fully using a T-handle wrench, and ensure the tool dimensions are within the specified tolerance range. Only use tools with a fully round shank and avoid modifying the chuck or using non-original parts. For any issues, such as oil leakage or low pressure, contact the seller for assistance instead of attempting repairs.

Why Choose JieHe

Choose CNC JieHe for precision, reliability, and efficiency. Our HSK32-40ES Hydraulic Chuck offers high clamping force, exceptional accuracy (less than 0.003mm runout), and a rigid design ideal for heavy machining. With quick setup times, easy handling, and a range of cooling options, it ensures optimal performance and tool longevity. Backed by our commitment to global standards (ISO, DIN, JIS-B, ANSI) and consistent precision through vacuum heat treatment, our products are built to meet your toughest machining needs. Trust us to deliver quality, precision, and unmatched support for your operations.
