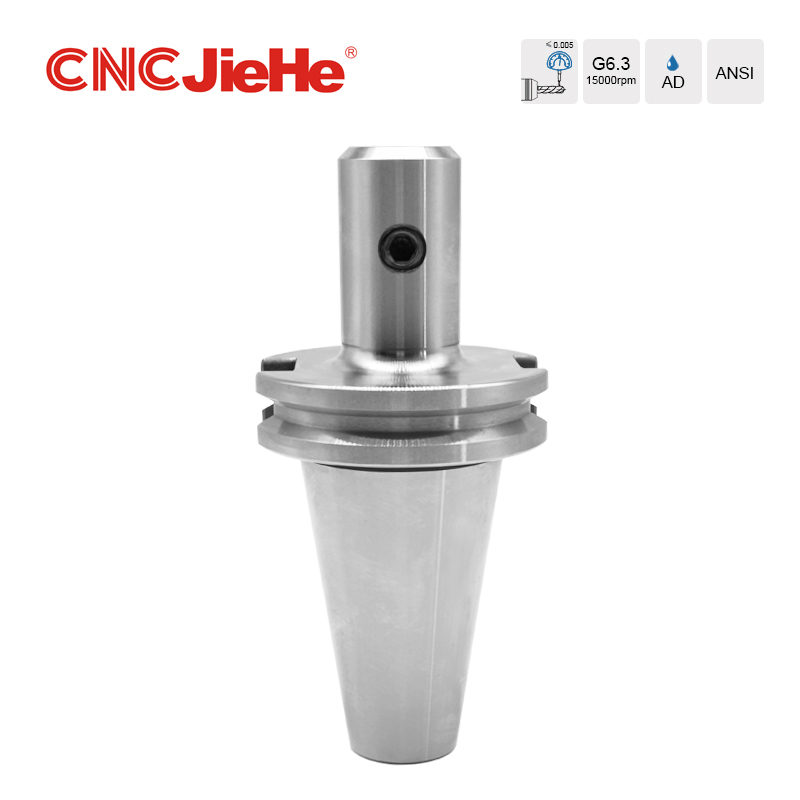

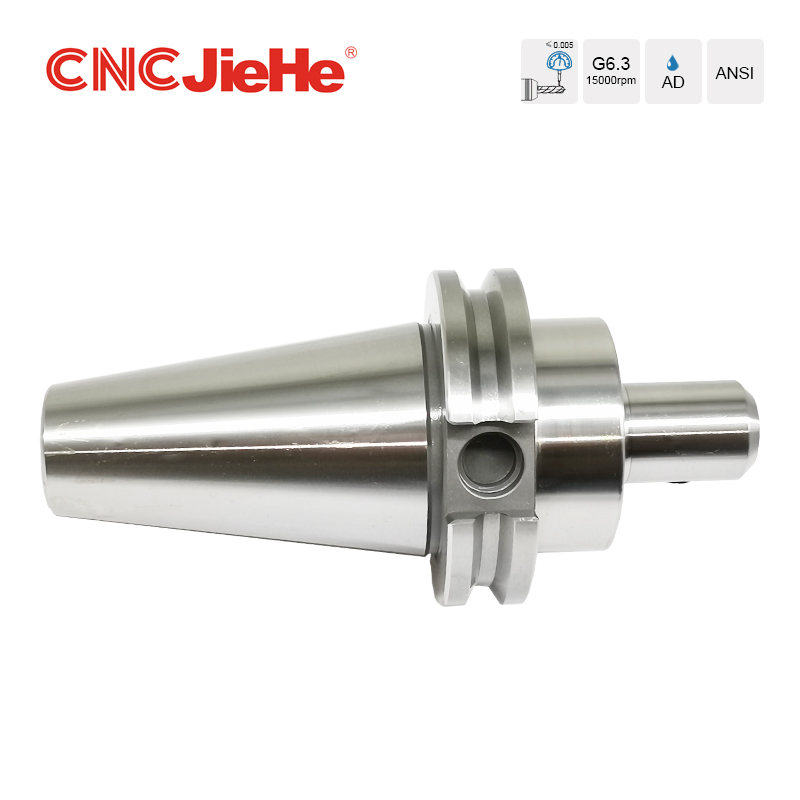

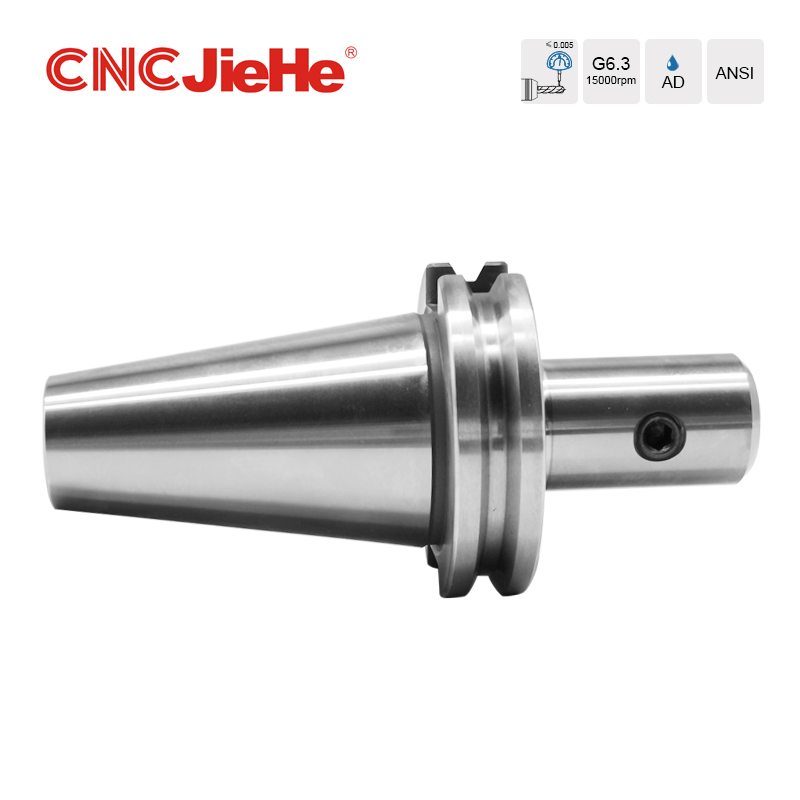

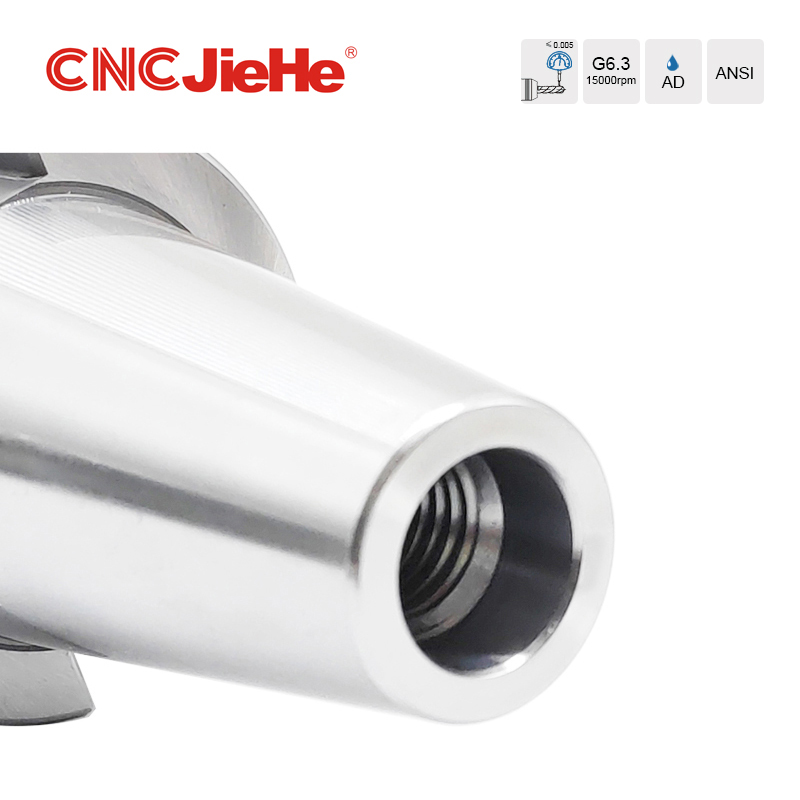

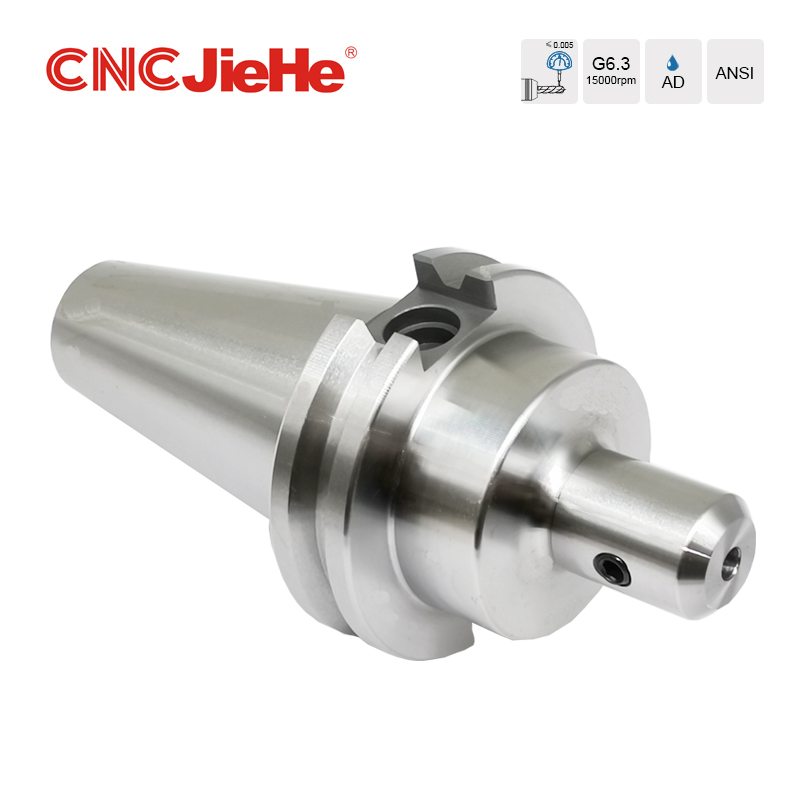

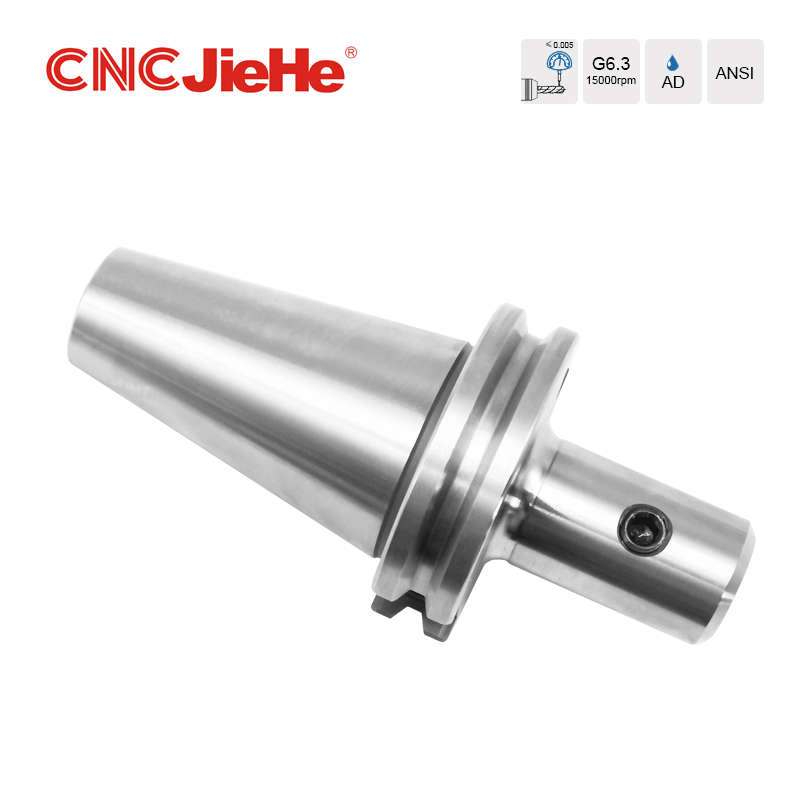

CAT SLN End Mill Holder (ANSI)

Product Description

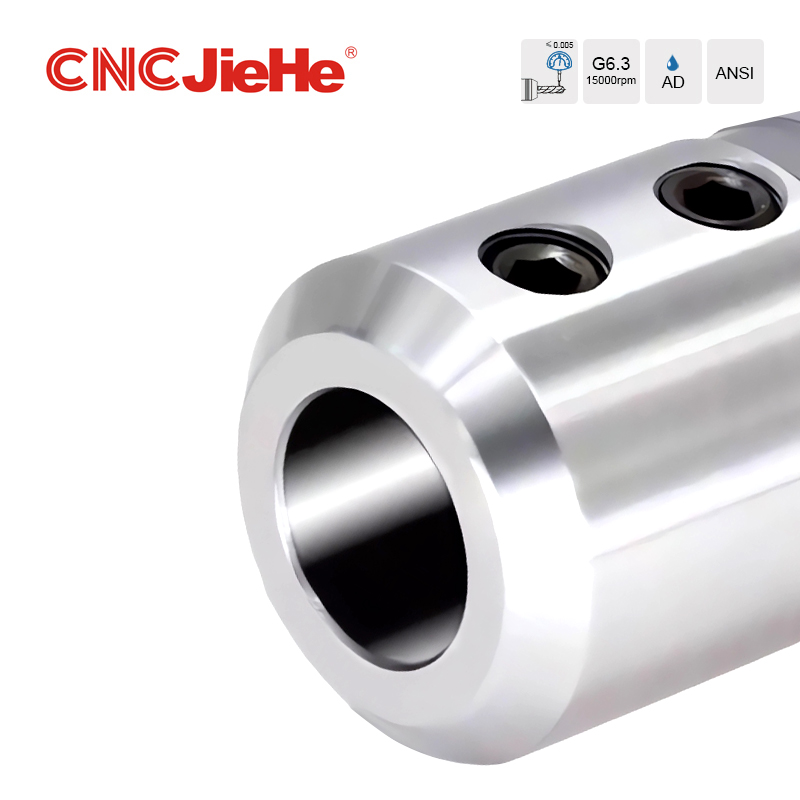

CAT SLN End Mill Holder is a high-precision clamping tool specially designed for CNC machining center, which is suitable for CAT taper interface machine tools (such as CAT40 and CAT50). Its Side Lock Nut (SLN) ensures the stability and rigidity under high-speed and heavy cutting conditions by firmly fixing the milling cutter with side screws, and is widely used in high-precision machining fields such as mold manufacturing and aerospace.

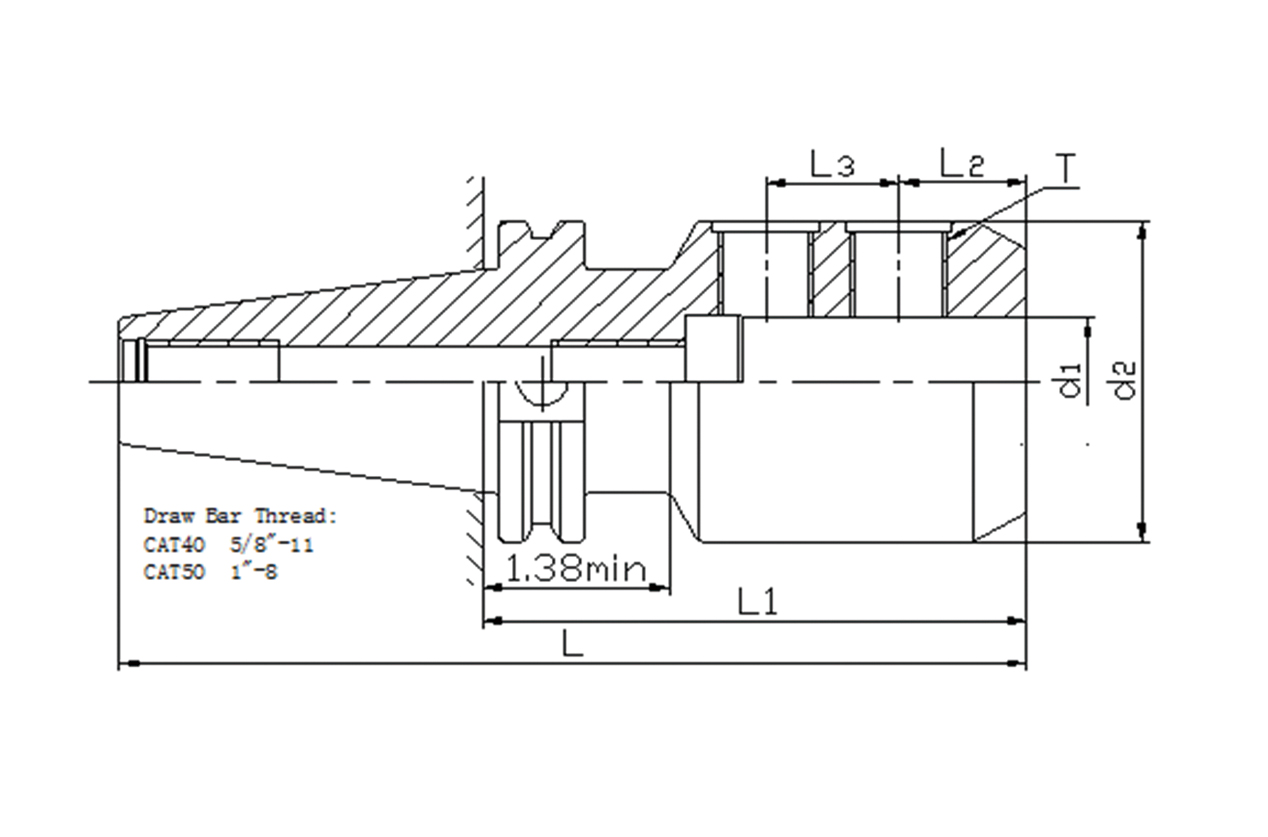

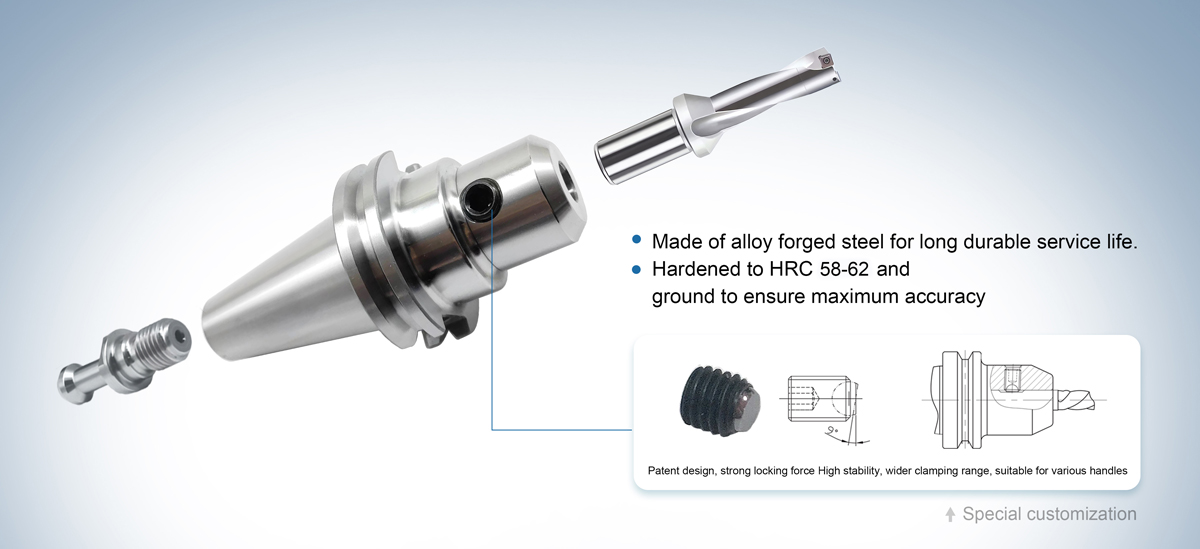

Product Schematic

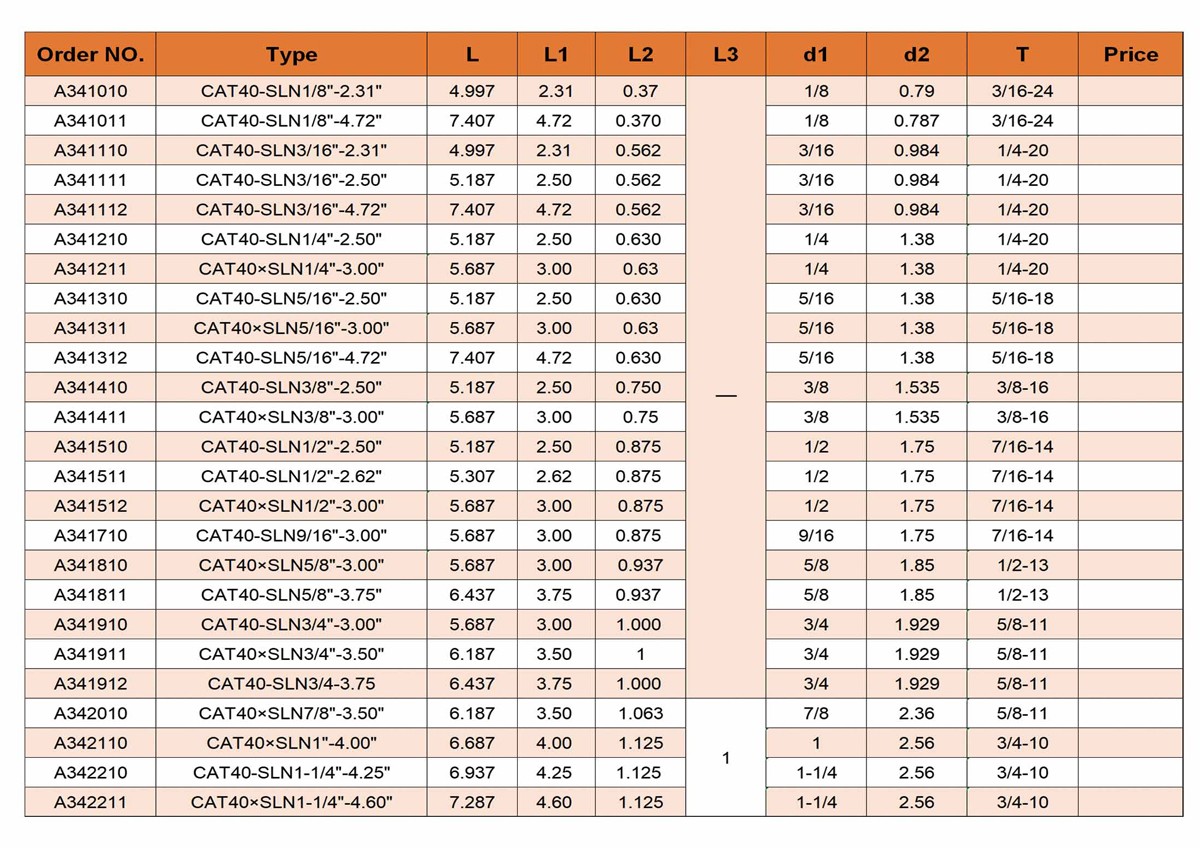

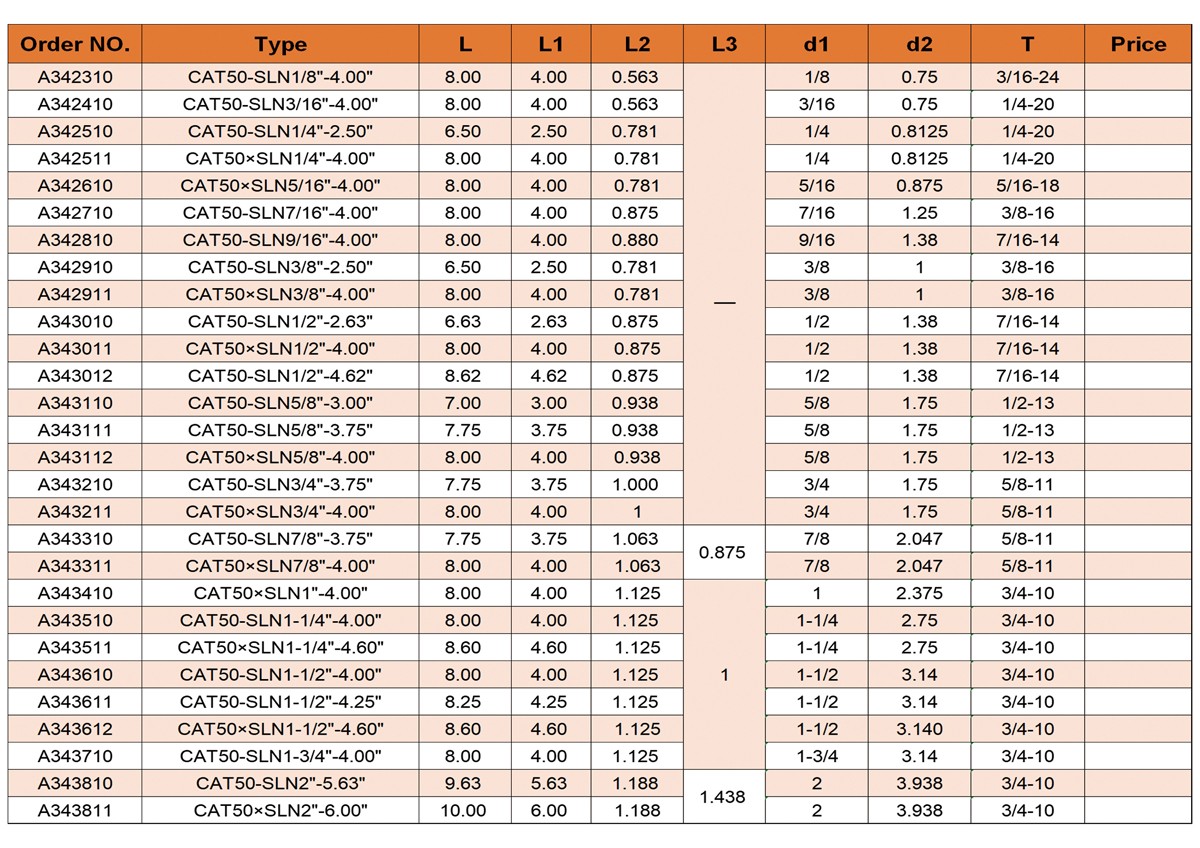

Product Parameter

Product Advantages

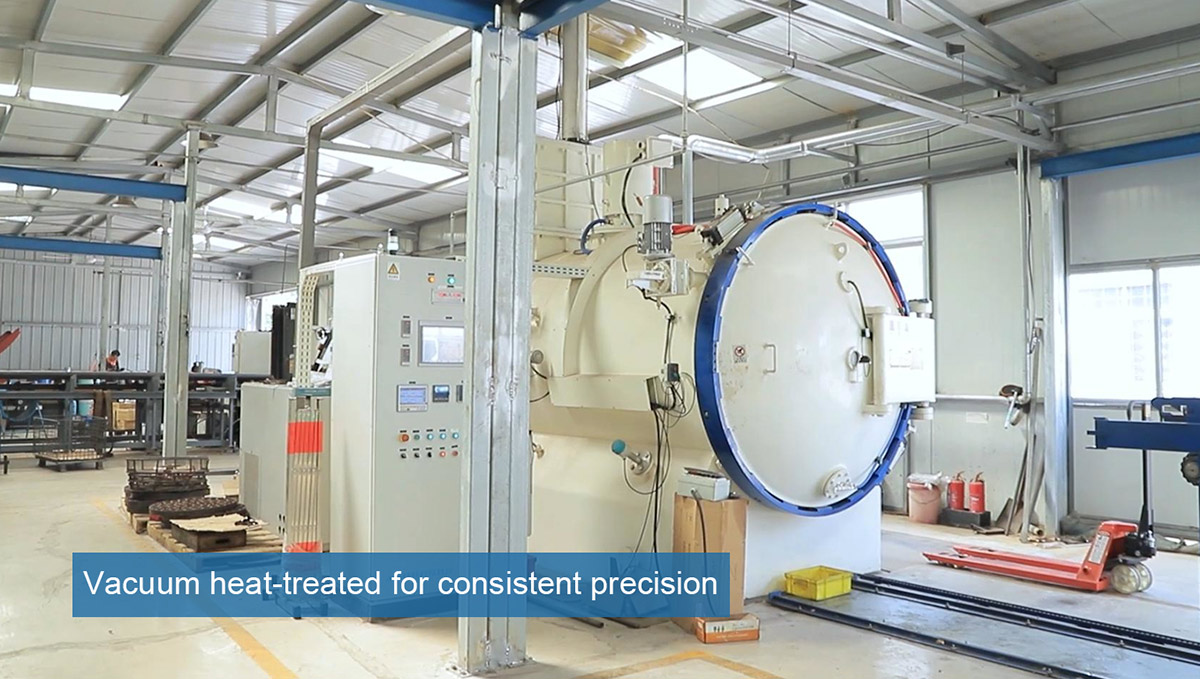

CAT SLN End Mill Holder clamps the cutter by side locking nuts (or screws), which provides stronger torsion resistance and prevents the cutter from loosening during machining. Clamping is simple and fast, which is suitable for machining scenes with frequent tool change. It is made of high-quality alloy steel (such as SCM435), and after heat treatment (HRC45-50) and precision grinding, the radial runout accuracy is ensured to be ≤0.003mm (when the cantilever length is 3xD). The contact area of conical surface is more than or equal to 85%, which improves the connection rigidity between machine tool spindle and tool holder. Adapt to the taper of CAT series (such as CAT40 and CAT50) and be compatible with mainstream CNC machining centers. Supports clamping straight shank milling cutter, and the common clamping diameter ranges from φ 3 mm to φ 32 mm (depending on the model).

High Rigidity and Stability: tool holders secure tools with lateral screws, featuring a simple structure and high rigidity. They can withstand significant cutting forces, ensuring stability during machining.

High Precision: The contact surface between the tool holder and the tool is precision-machined, guaranteeing high coaxiality and repeatability, making it suitable for high-precision machining requirements.

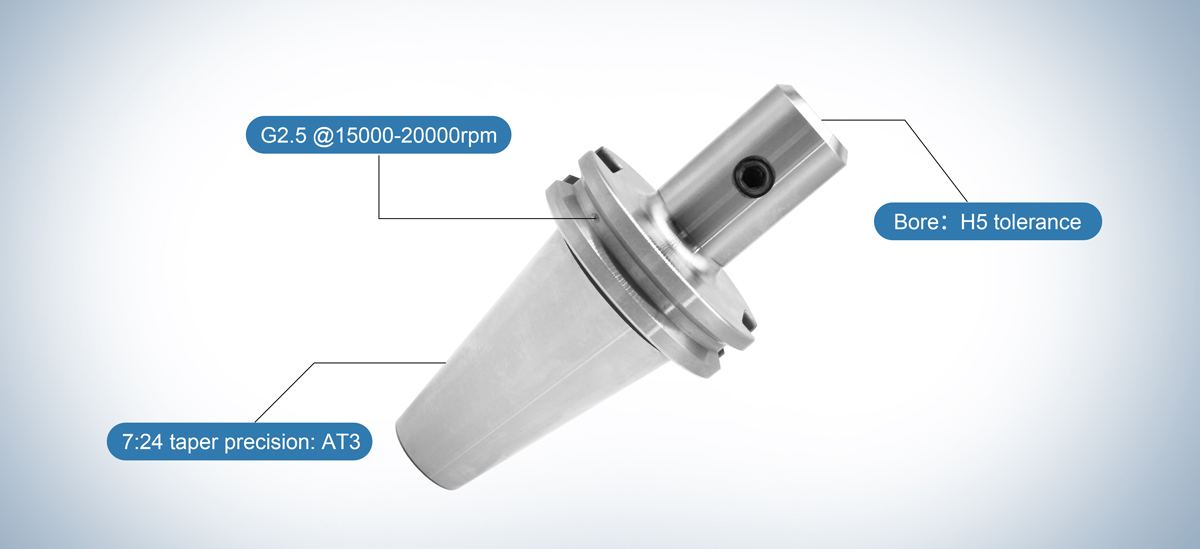

Taper Specification:

The tool holder features a 7:24 taper, The taper precision meets the AT3 grade,

Bore Tolerance:

The bore tolerance of the tool holder is H5 grade, a precise tolerance level that ensures a high-precision fit between the tool and the holder, minimizing vibration and errors.

Dynamic Balance Grade:
At a rotational speed of 15,000 rpm, the tool holder achieves a dynamic balance grade of G6.3. This indicates excellent balance during high-speed rotation, effectively reducing vibration and ensuring stability and surface quality during machining.

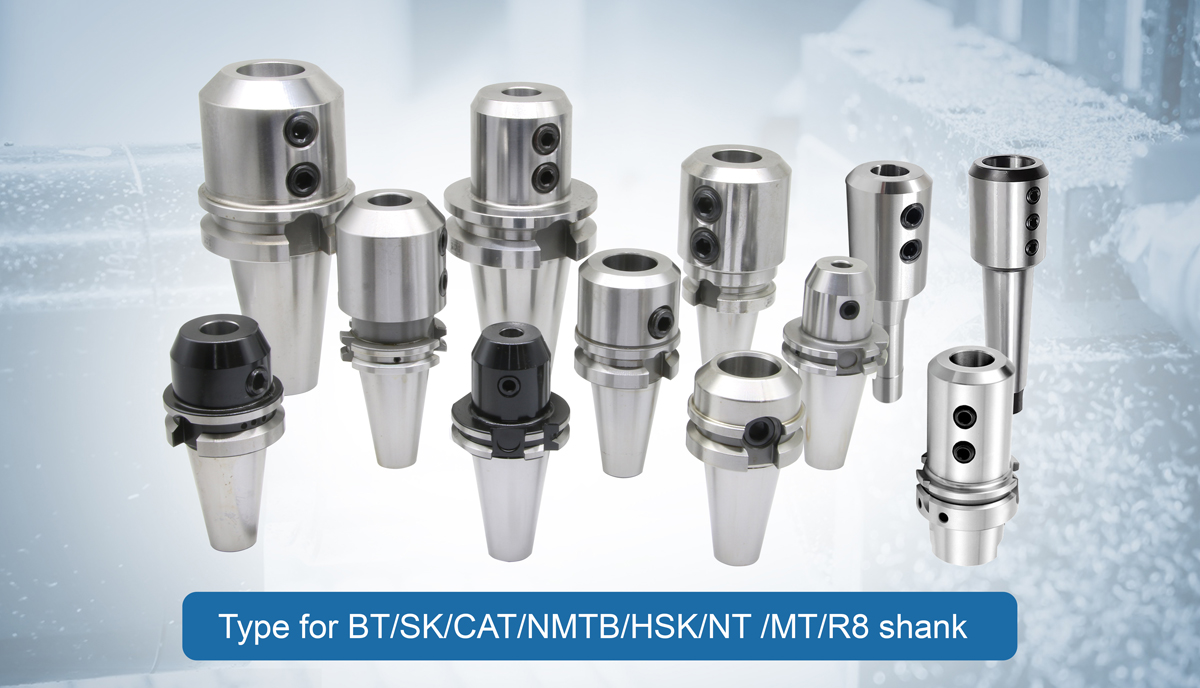

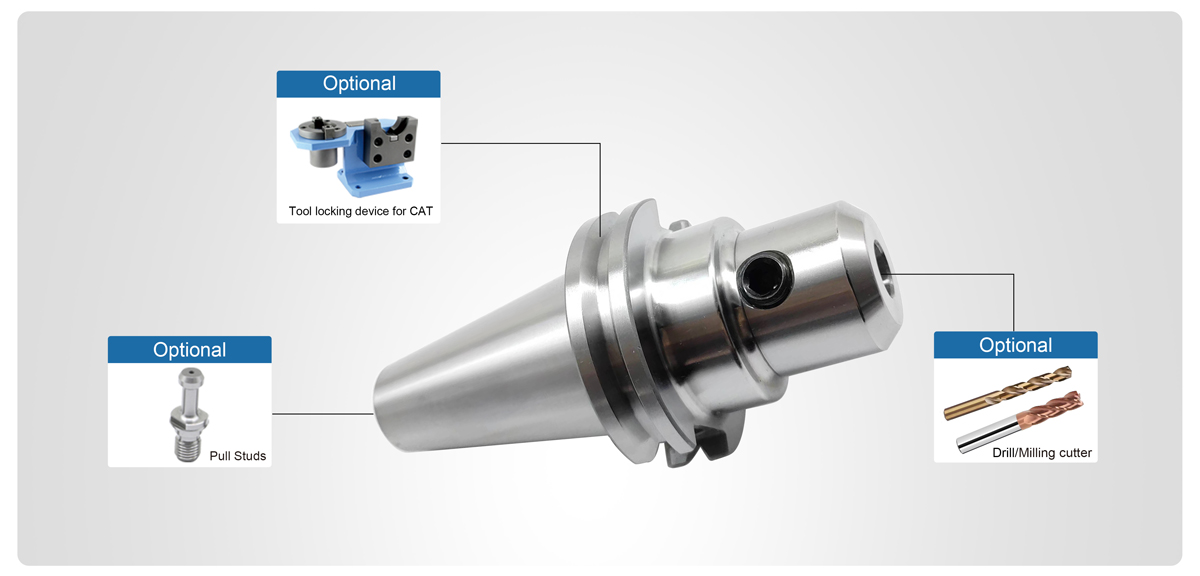

Optional Accessories

The  tool holder is a versatile tool clamping device that can be flexibly equipped with various accessories, including U-drills, milling cutters, Tool locking device for CAT, and pull studs, based on machining requirements. This design allows it to adapt to different machining tasks, offering greater flexibility and efficiency.

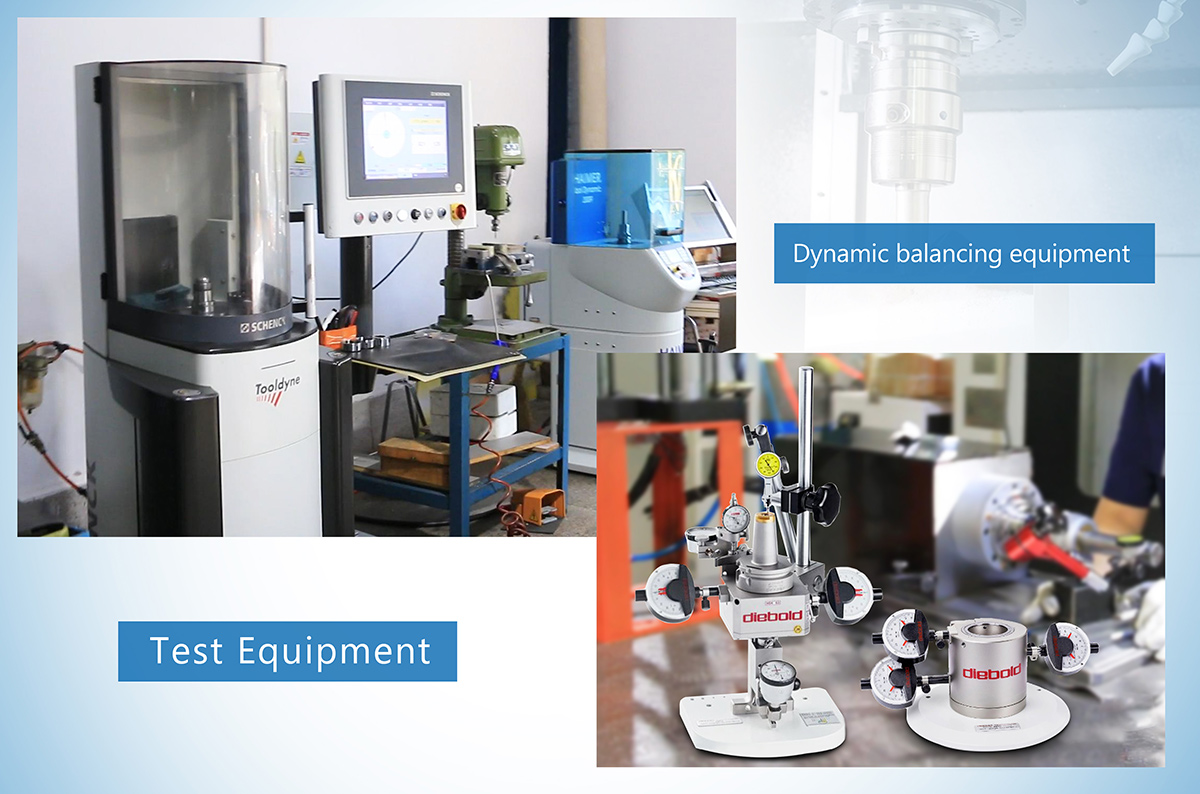

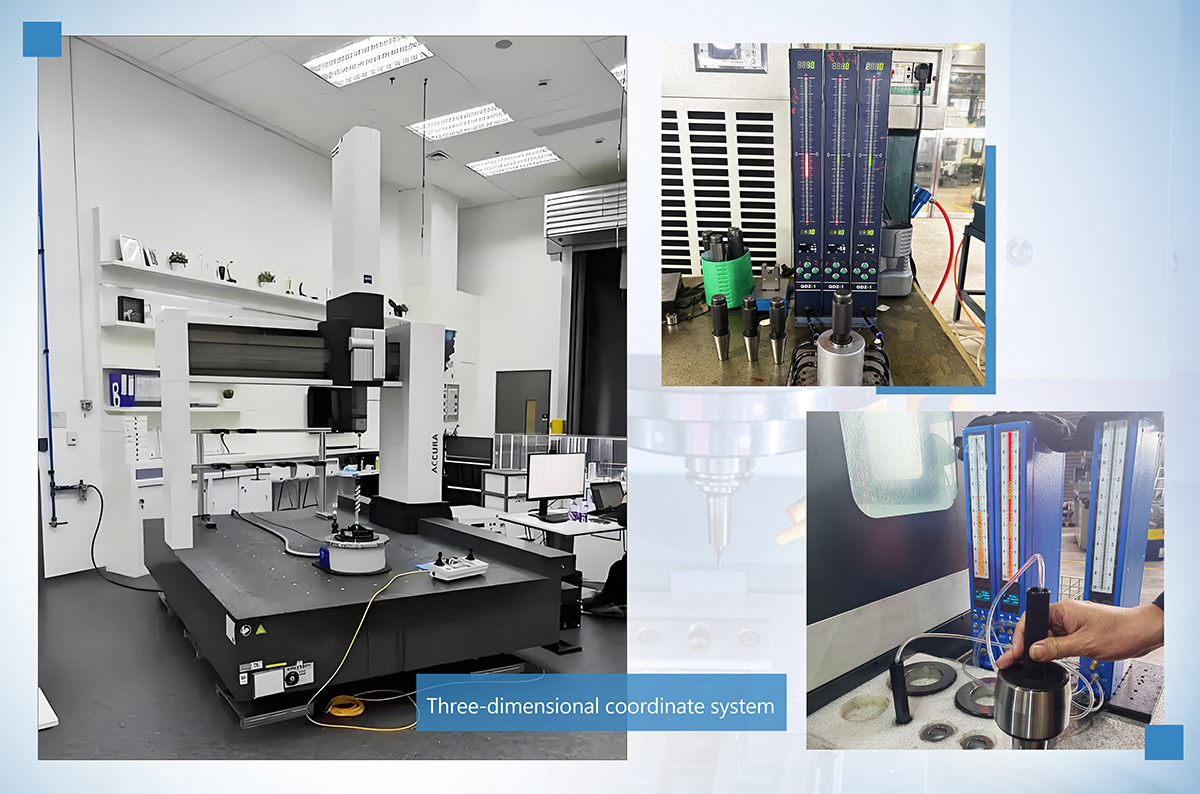

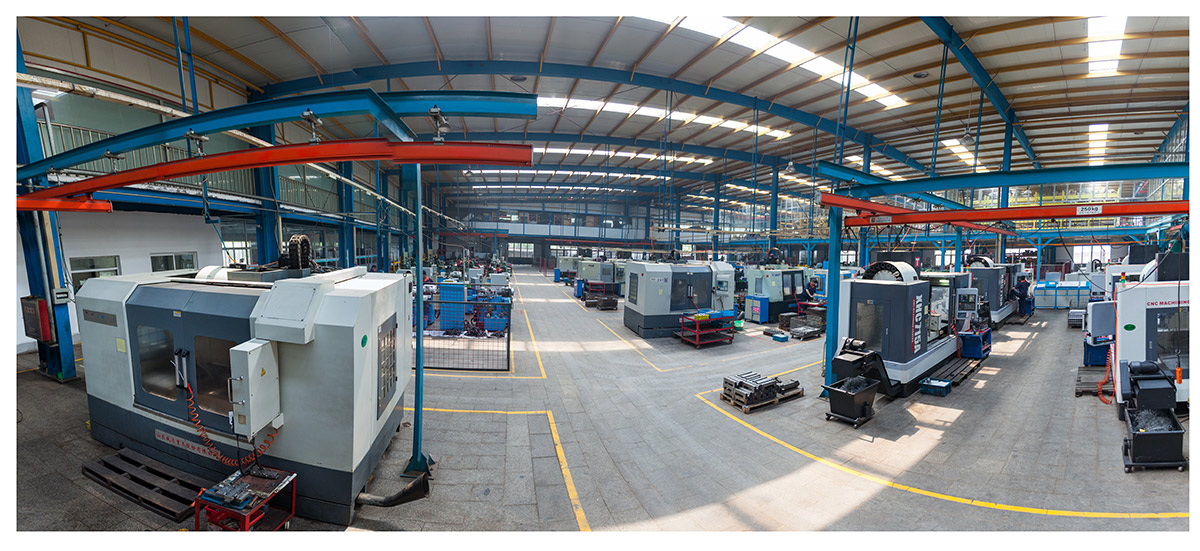

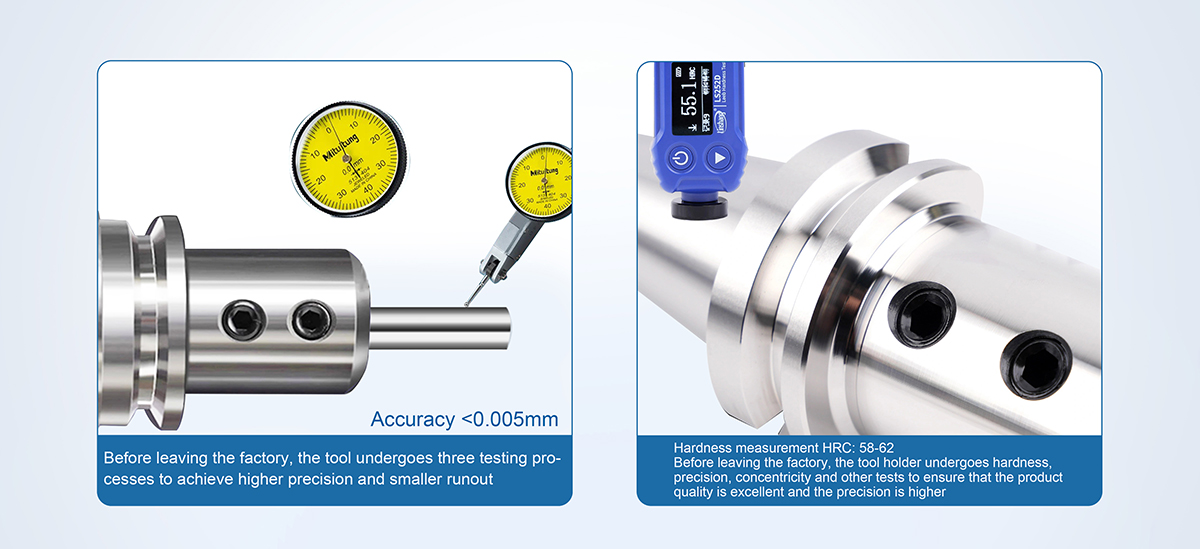

Quality Inspection

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

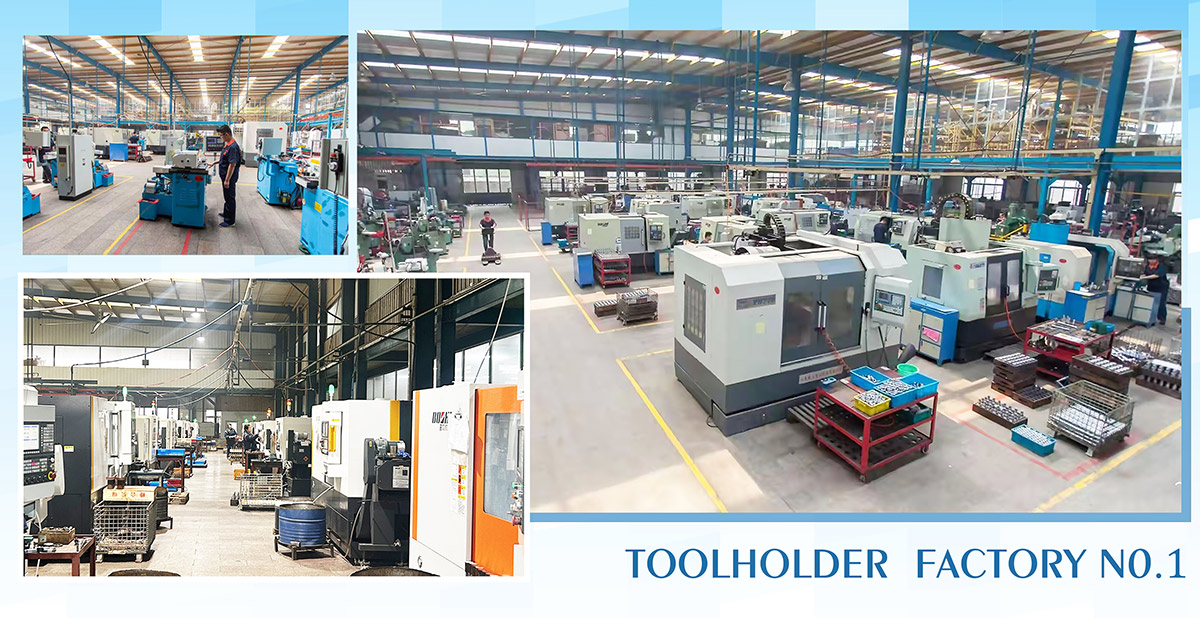

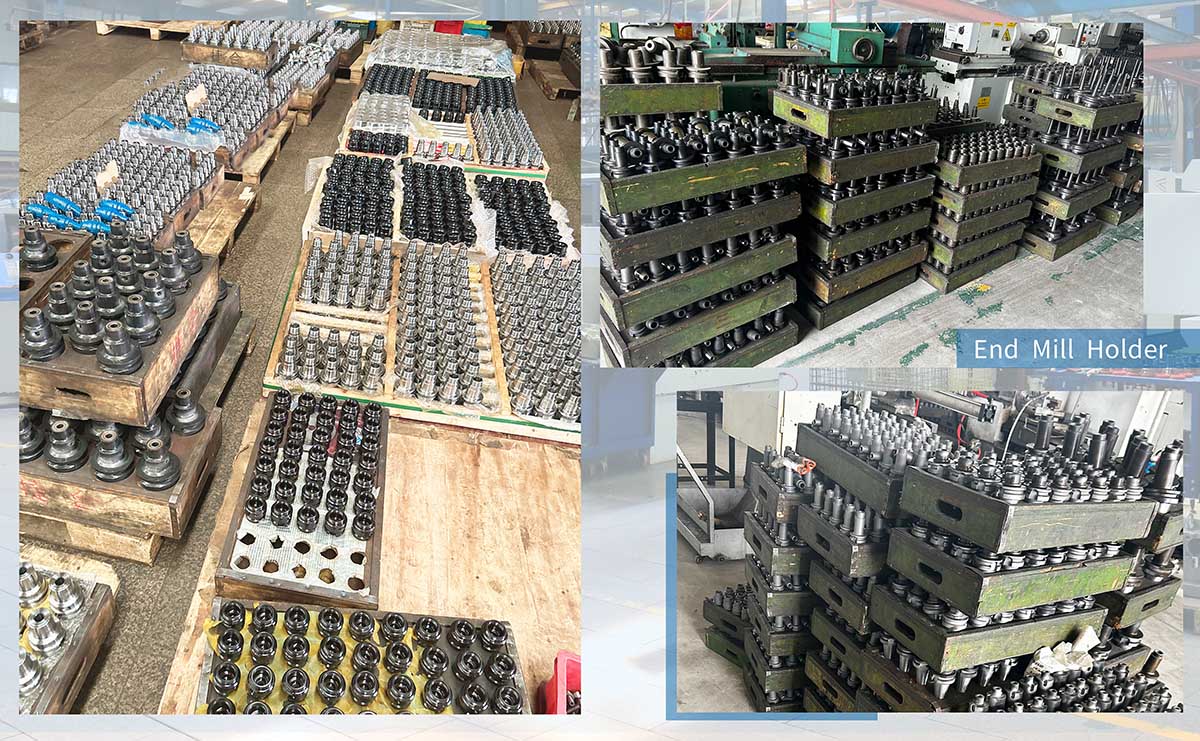

Photographs of Products in the Workshop

Our workshop maintains a robust inventory of semi-finished products, ensuring a steady supply and enabling us to meet tight deadlines with speed and efficiency. With streamlined production processes and a well-organized supply chain, we guarantee quick turnaround times without compromising on quality. Our experienced team and state-of-the-art facilities allow us to respond swiftly to customer demands, offering flexible solutions and fast delivery to keep your operations running smoothly.

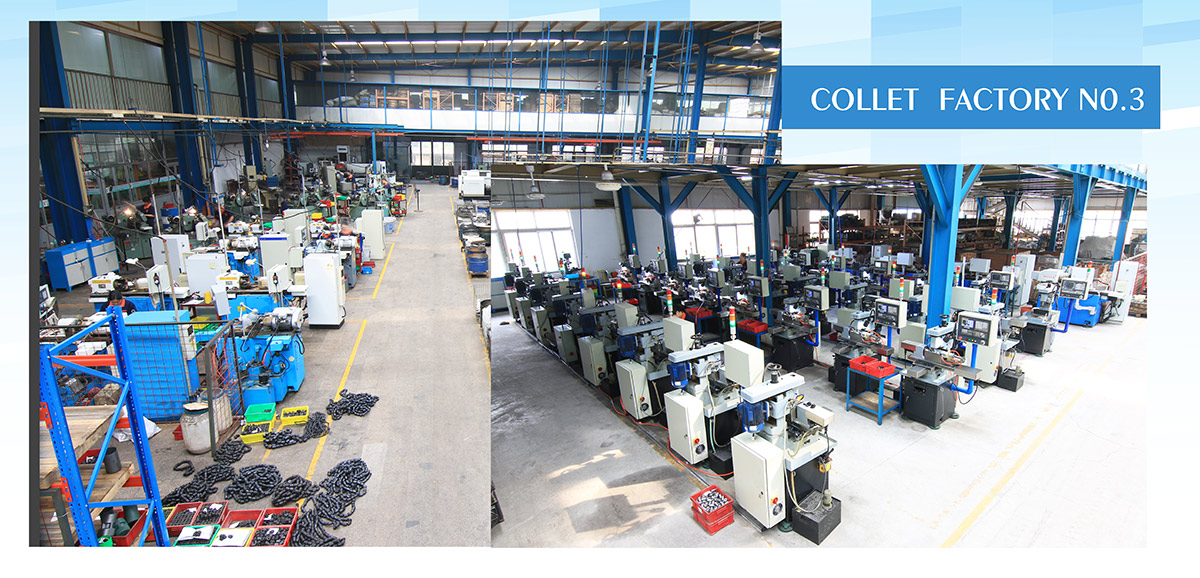

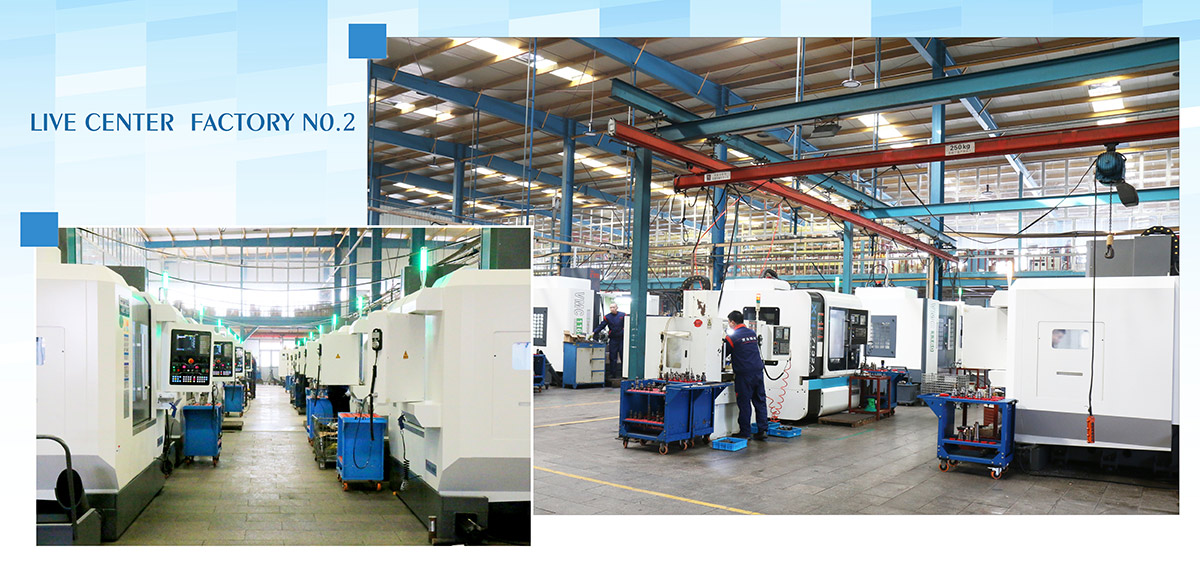

Factory Displayment

Jining Jiehe Machinery Co., Ltd., established in 2000, is a national high-tech enterprise and a provincial-level technology-driven and innovative company. Specializing in CNC machine tool accessories, the company offers over 1,000 product varieties, with 60% of products exported. With over 200 CNC machines and a team of more than 100 employees, Jiehe has earned over 30 national patents and is recognized for its well-known trademarks such as CNCJiehe, Sun Moon Lake, and Goose. The company regularly participates in international exhibitions across Beijing, Shanghai, the U.S., Germany, Italy, and Tokyo, building a strong global market presence. By benchmarking top companies in Germany and Japan, Jiehe has achieved rapid development and established a comprehensive production and R&D base with subsidiaries in Jining, Shandong, Suzhou, and beyond.
