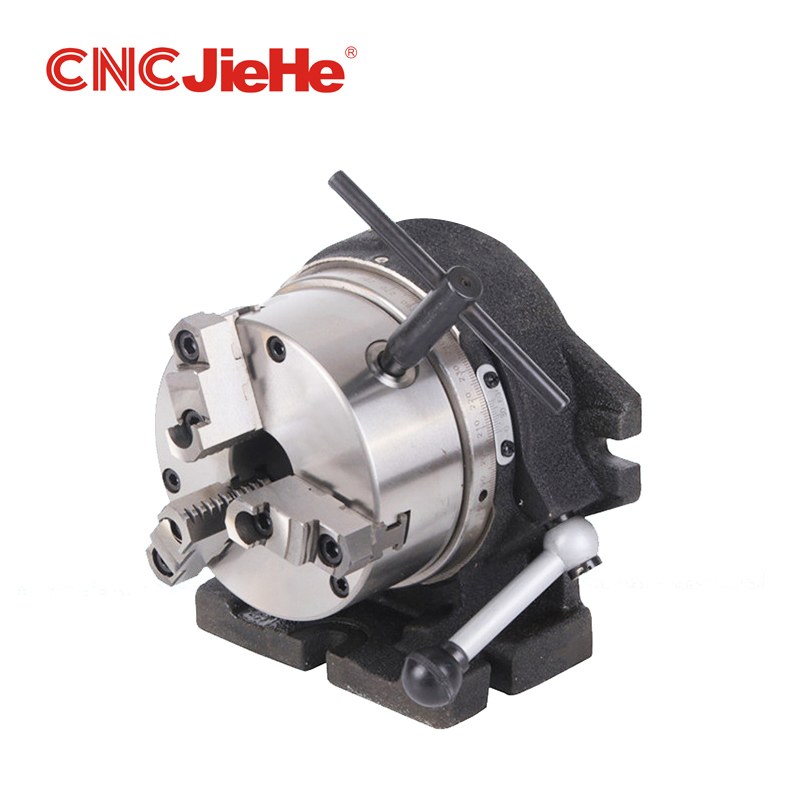

Simple Horizontal And Vertical Indexing Spacer

Product introduction

Simple horizontal and vertical indexing spacer is a multifunctional positioning spacer specially designed for industrial assembly, machining and precision equipment. Its core function is to simplify the alignment and fixing process of complex parts through horizontal and vertical precise positioning, and ensure assembly accuracy and repeatability. Whether it is automatic production line, mold manufacturing or electronic equipment assembly, this product can significantly improve efficiency and reduce human error.

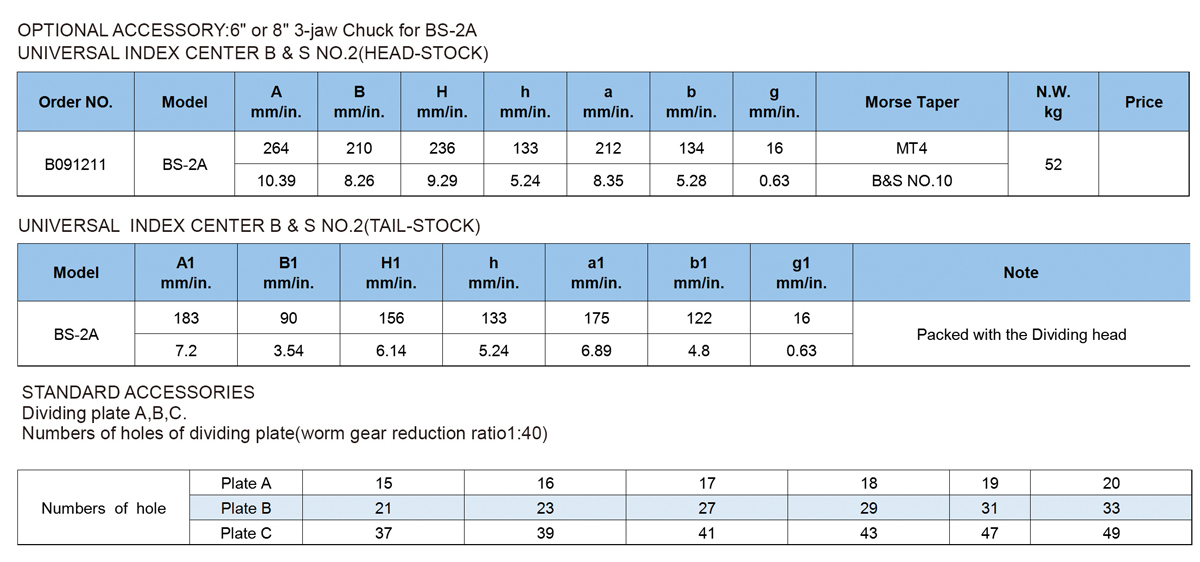

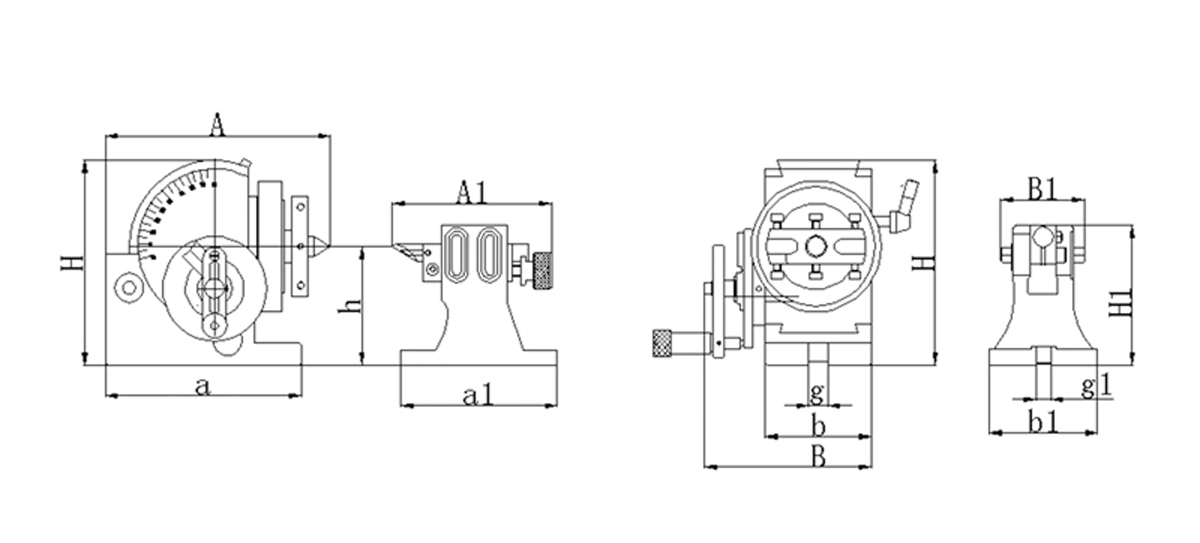

Product Parameter

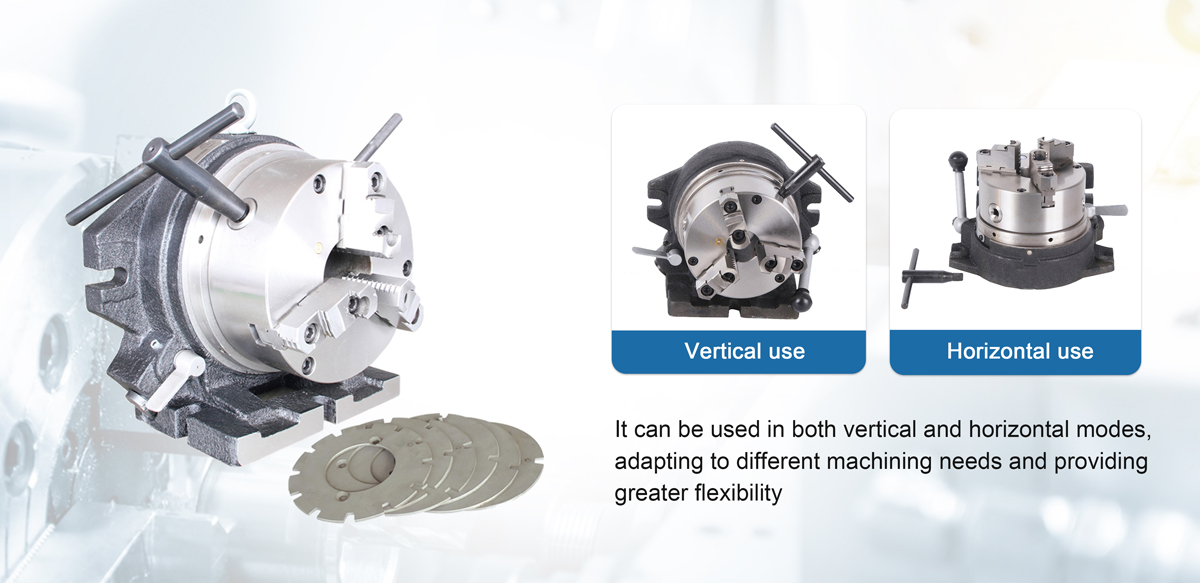

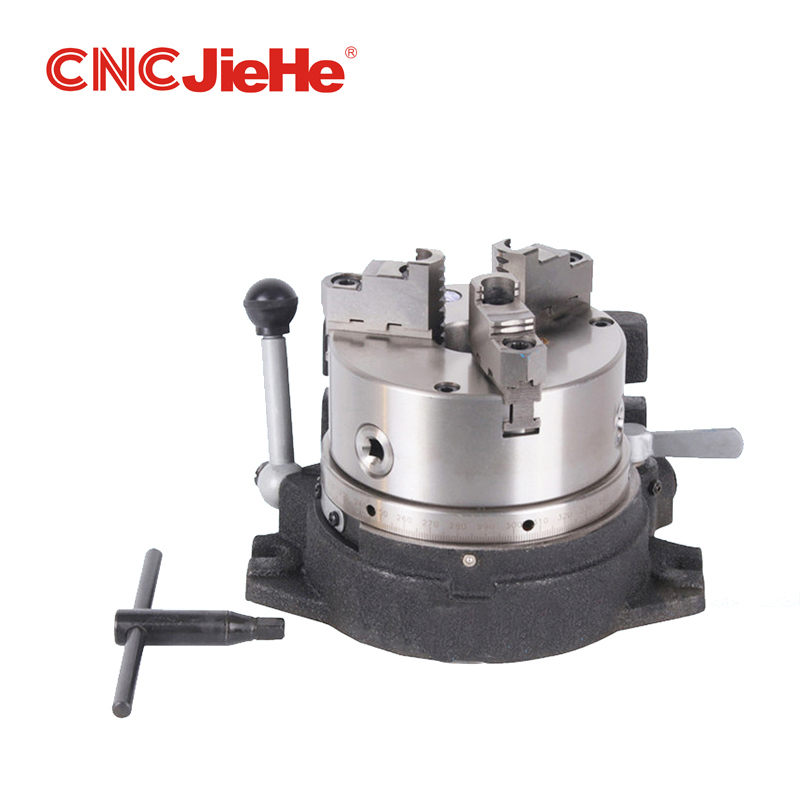

Vertical and horizontal use

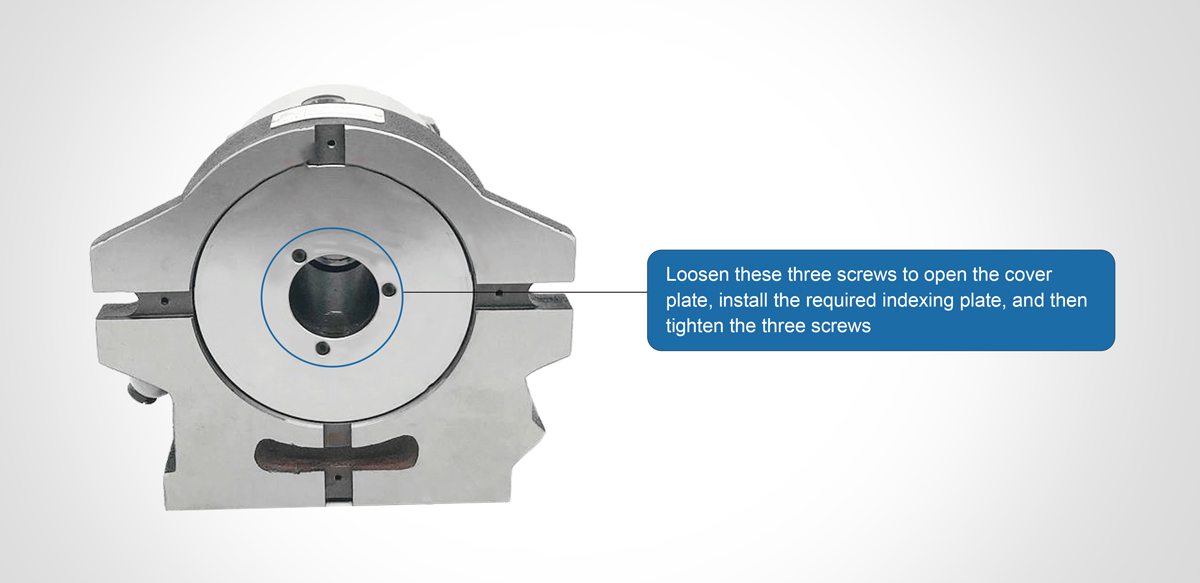

Characteristics of  Vertical and horizontal use

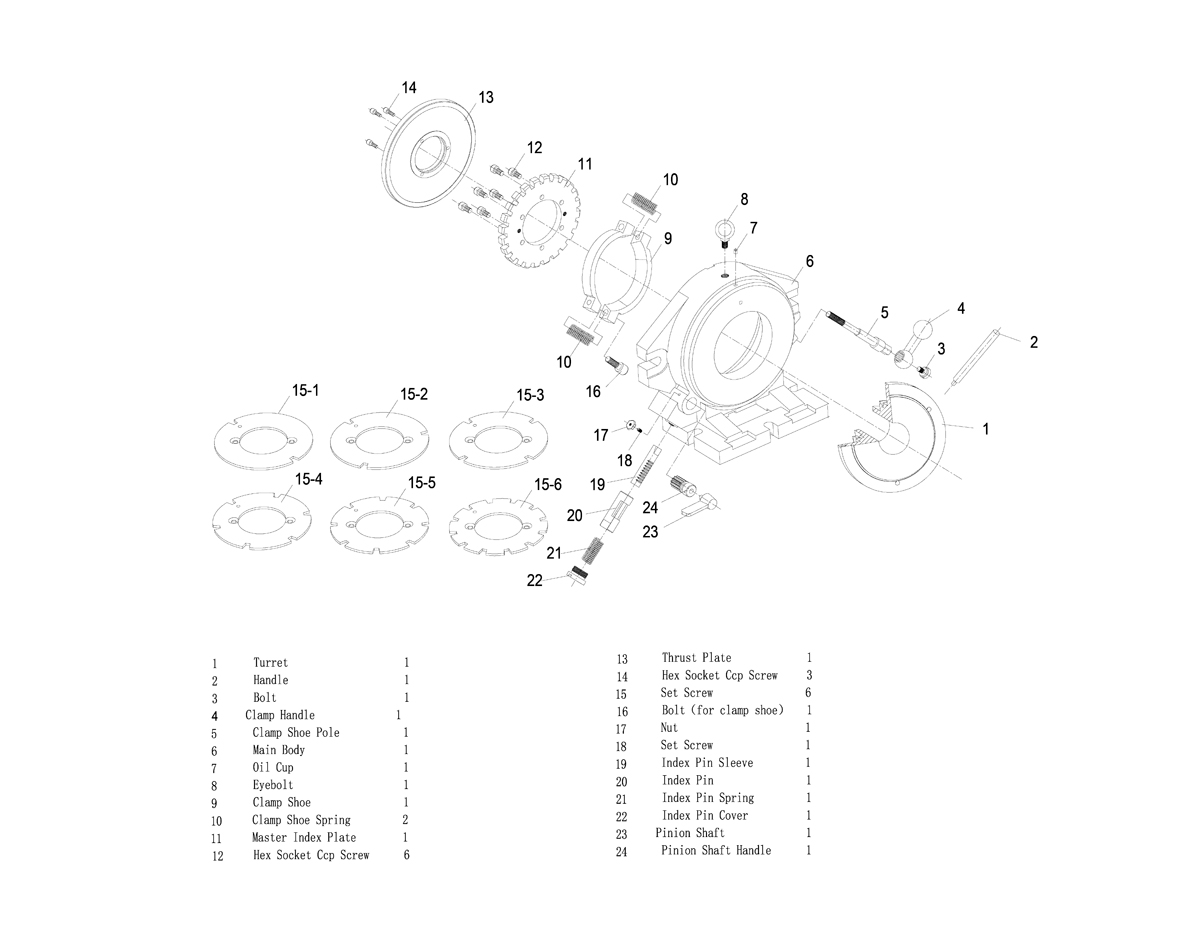

3D Diagram

Quality Inspection

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

Photographs of Products in the Workshop

Our workshop maintains a robust inventory of semi-finished products, ensuring a steady supply and enabling us to meet tight deadlines with speed and efficiency. With streamlined production processes and a well-organized supply chain, we guarantee quick turnaround times without compromising on quality. Our experienced team and state-of-the-art facilities allow us to respond swiftly to customer demands, offering flexible solutions and fast delivery to keep your operations running smoothly.

Factory Displayment

Jining Jiehe Machinery Co., Ltd., established in 2000, is a national high-tech enterprise and a provincial-level technology-driven and innovative company. Specializing in CNC machine tool accessories, the company offers over 1,000 product varieties, with 60% of products exported. With over 200 CNC machines and a team of more than 100 employees, Jiehe has earned over 30 national patents and is recognized for its well-known trademarks such as CNCJiehe, Sun Moon Lake, and Goose. The company regularly participates in international exhibitions across Beijing, Shanghai, the U.S., Germany, Italy, and Tokyo, building a strong global market presence. By benchmarking top companies in Germany and Japan, Jiehe has achieved rapid development and established a comprehensive production and R&D base with subsidiaries in Jining, Shandong, Suzhou, and beyond.
