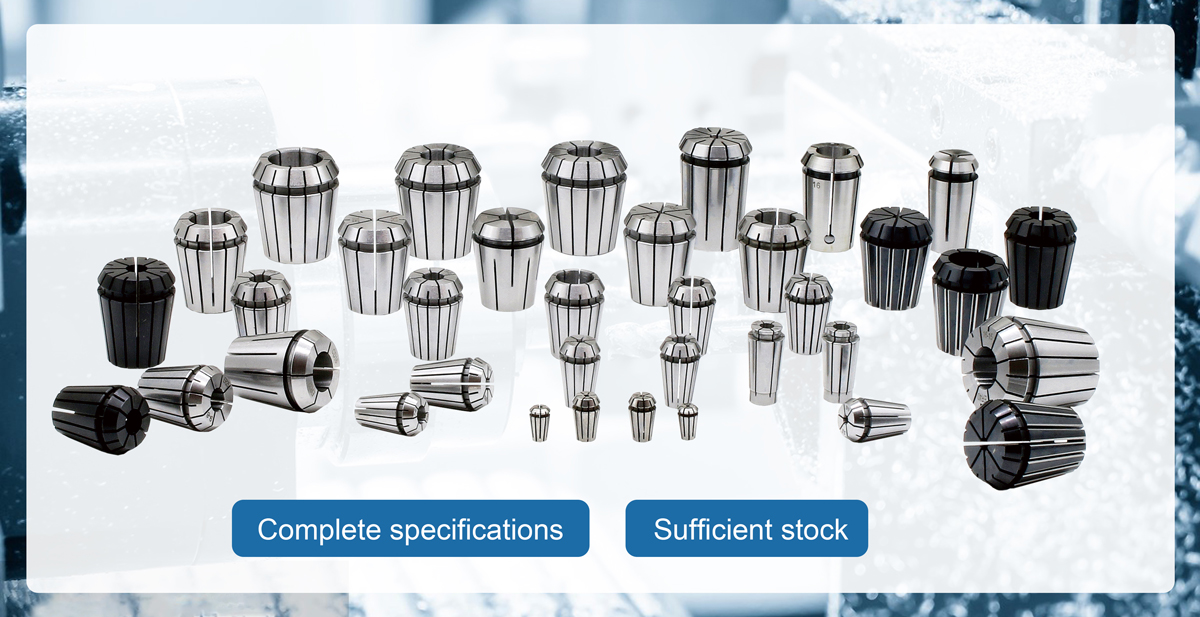

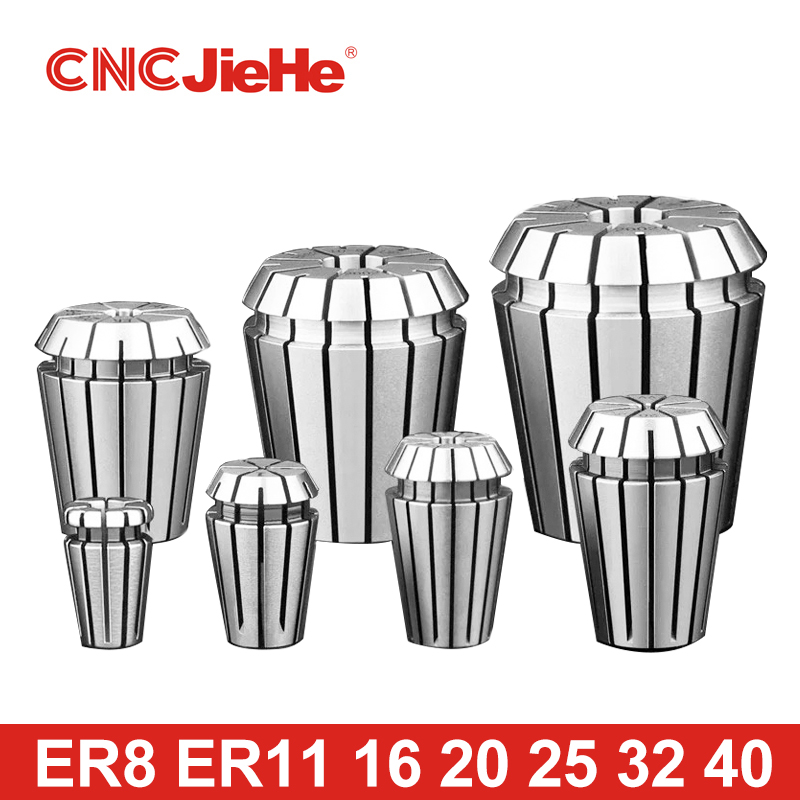

ER Spring Collet inch

Product Description

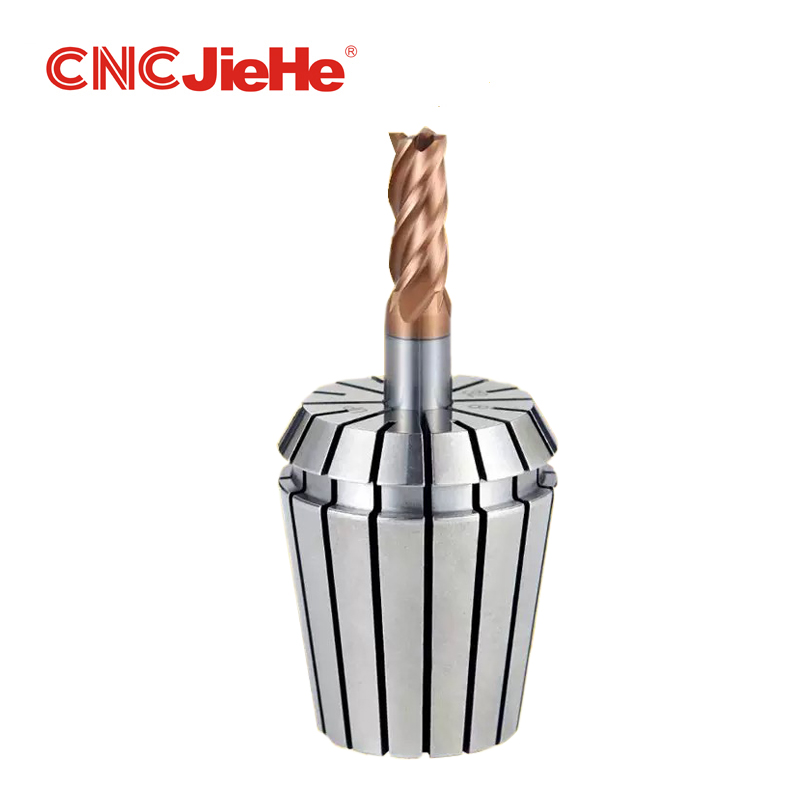

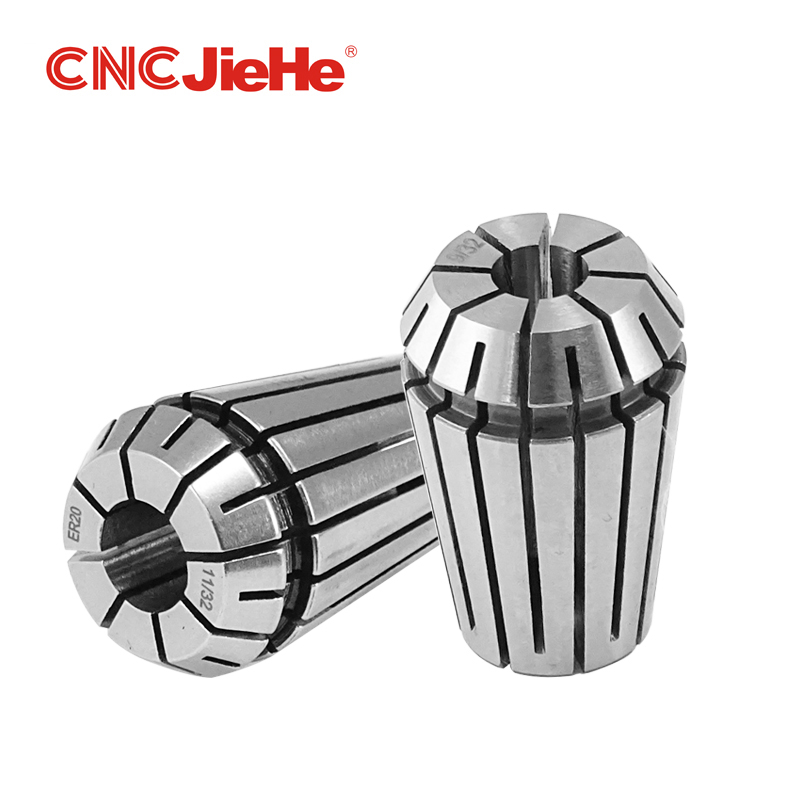

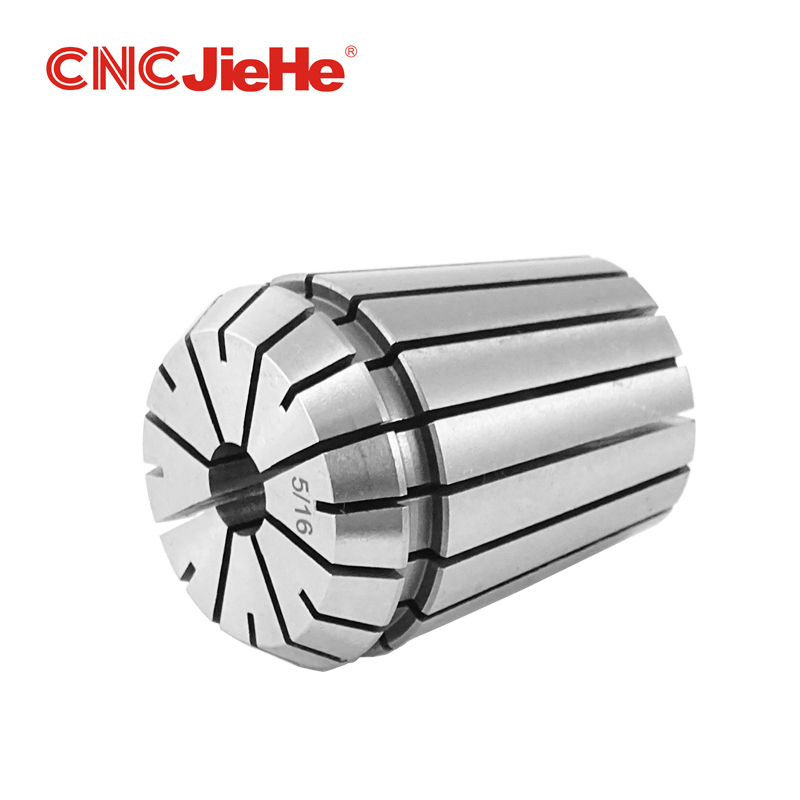

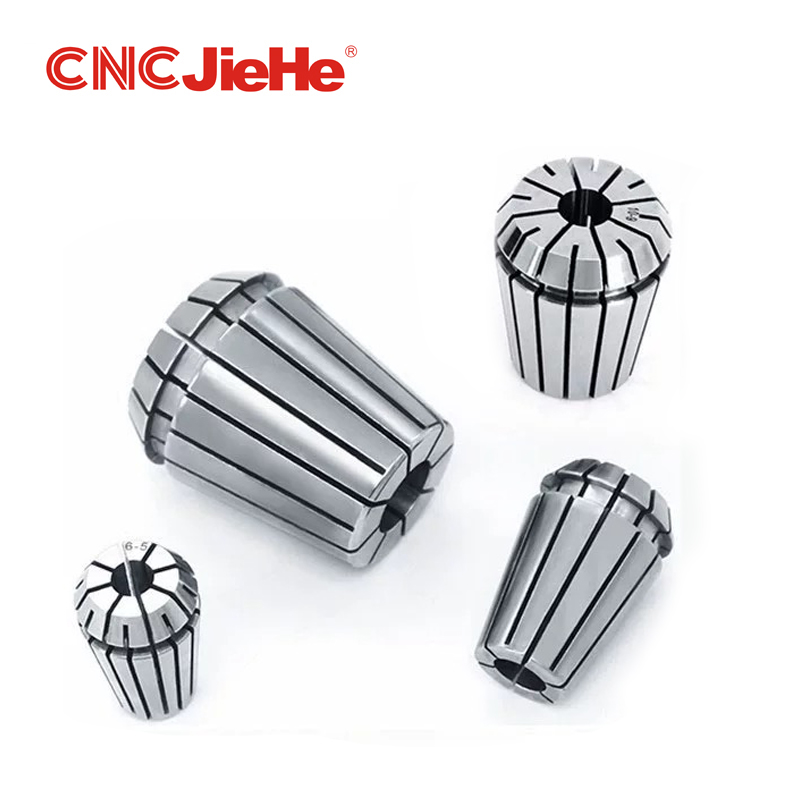

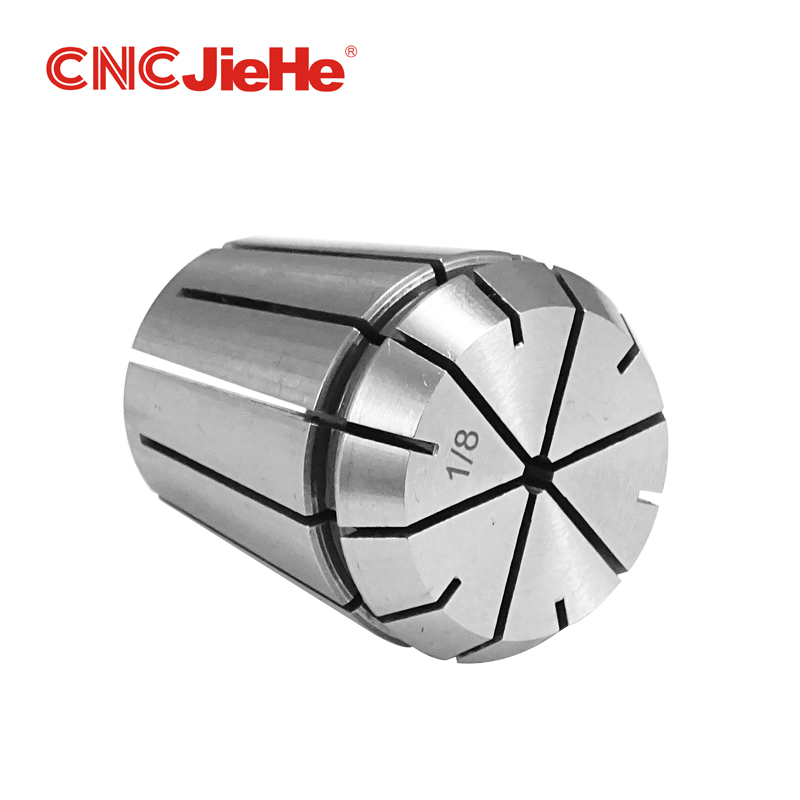

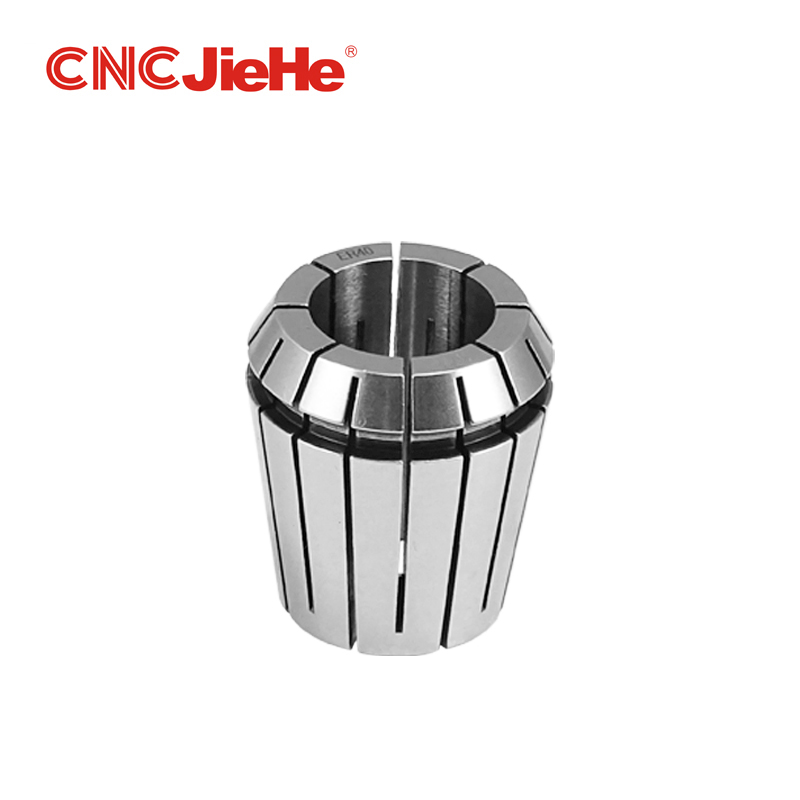

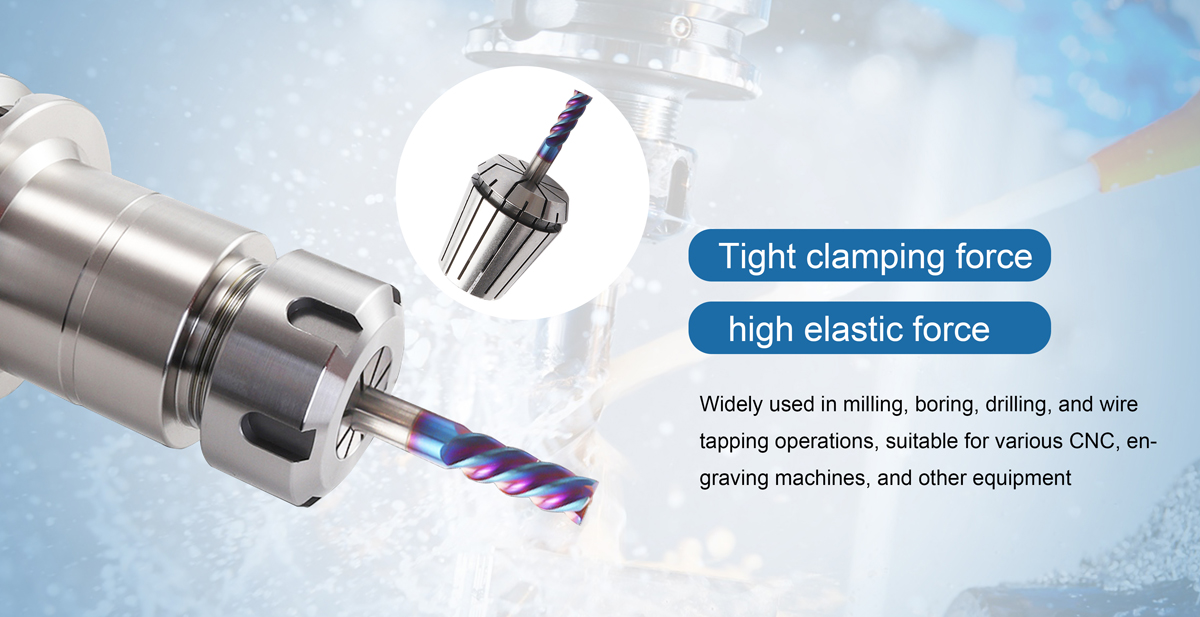

ER Spring Collet (English) is a kind of high-precision fixture, which is widely used in CNC machine tools, milling machines, drilling machines and other processing equipment to clamp tools (such as milling cutters, drills, reamers, etc.). The English version is specially designed to adapt to the tool with inch as the unit, and meets the processing requirements in North America and other regions where English standards are used.

Product Schemat

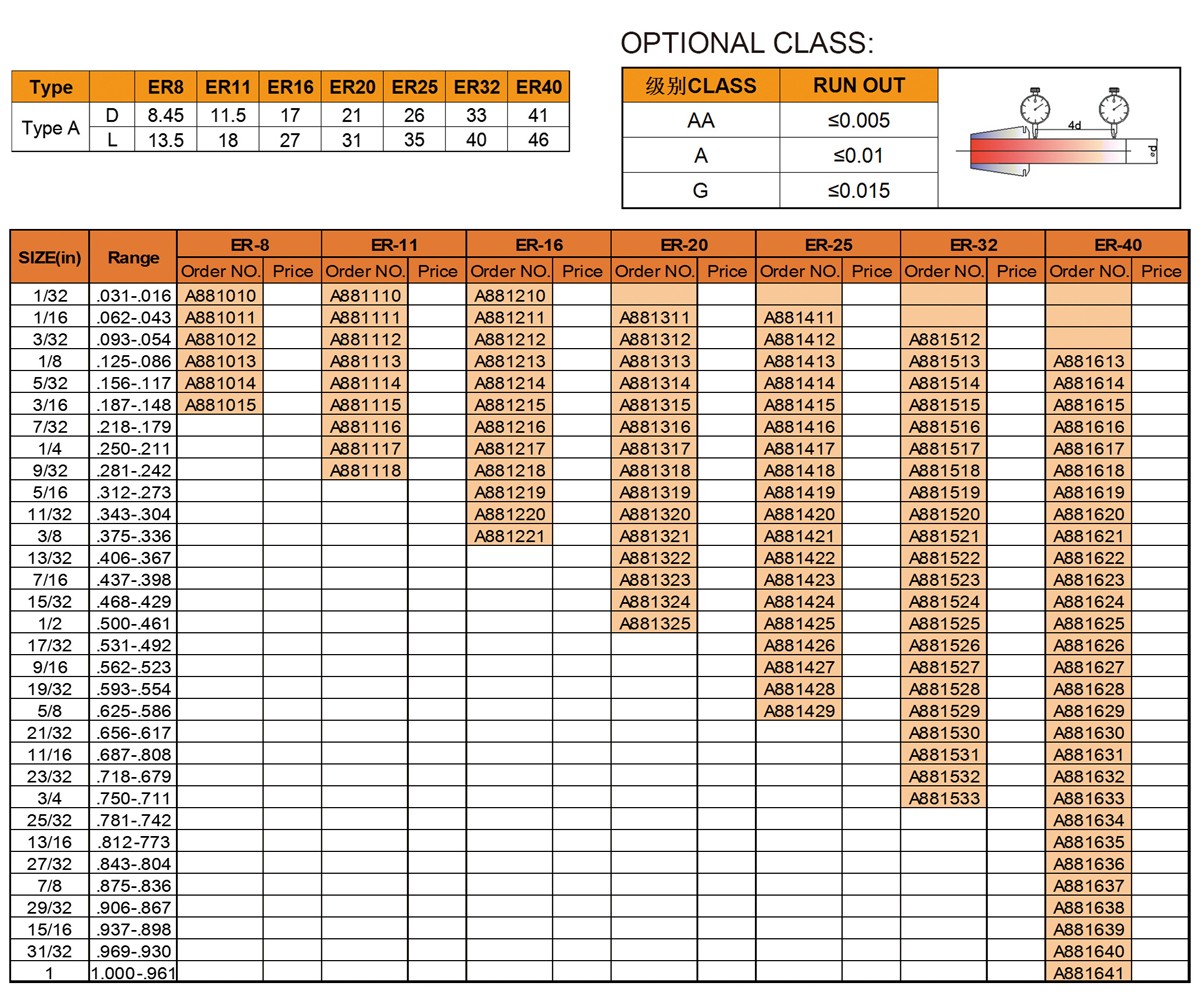

Product Parameter

Product Advantages

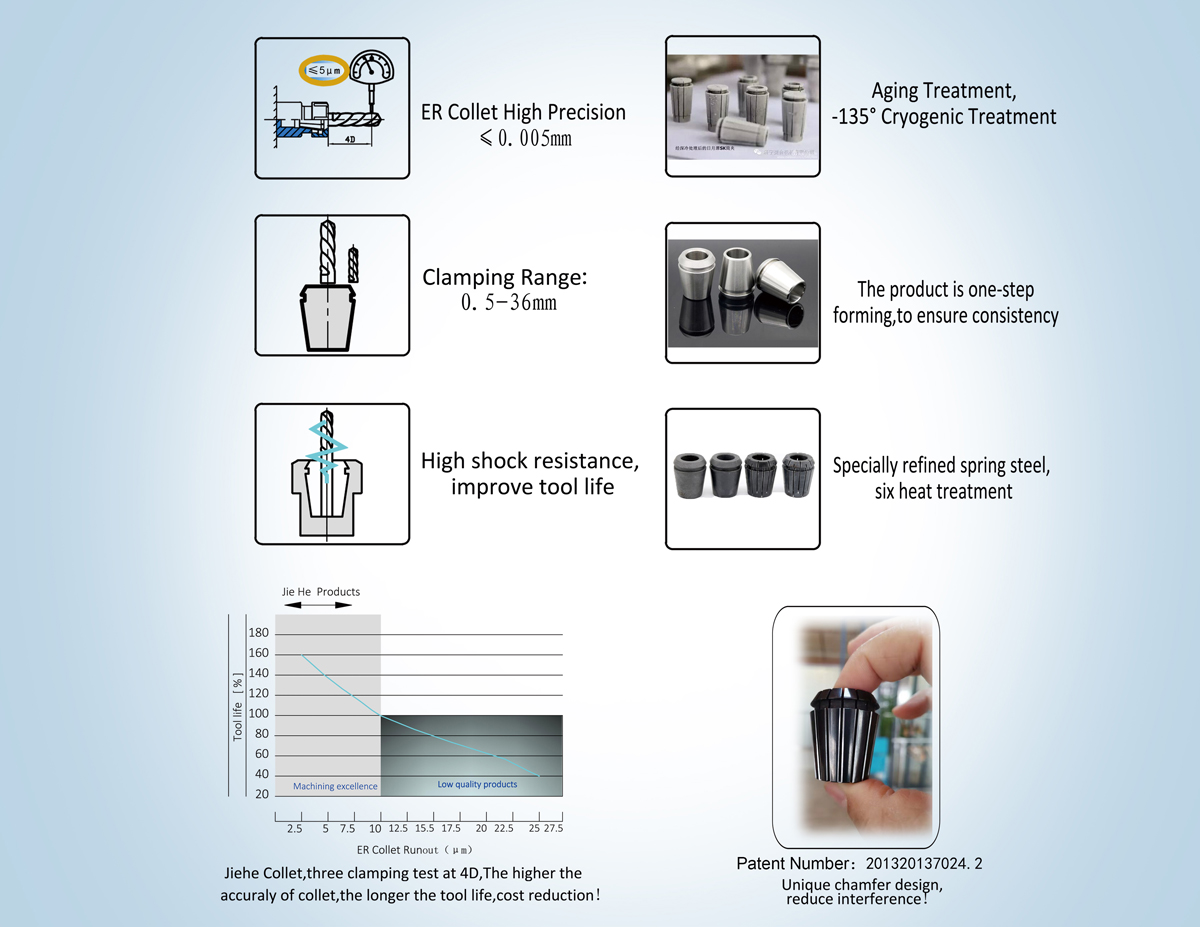

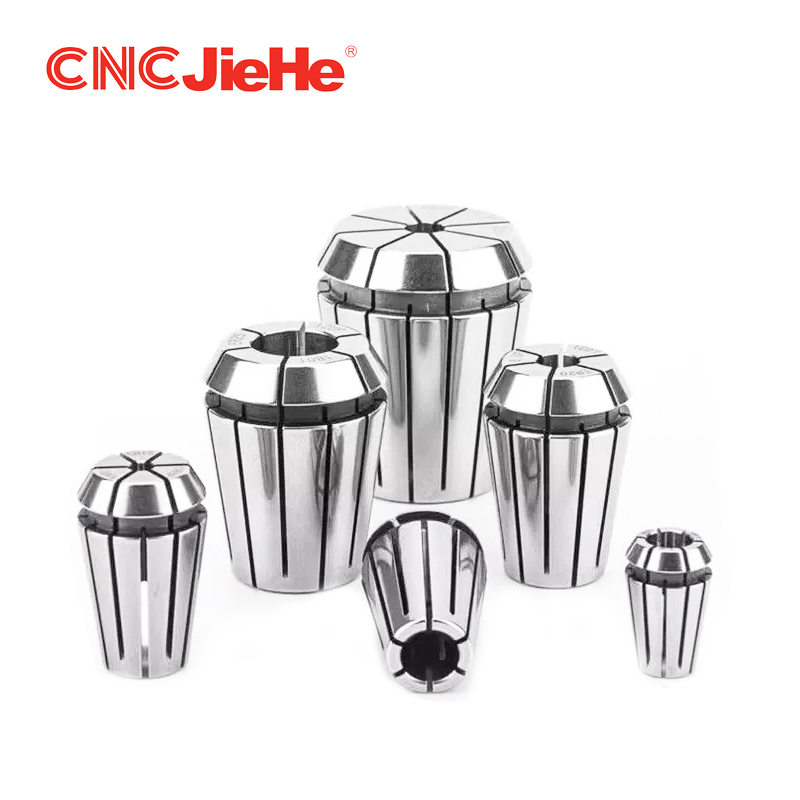

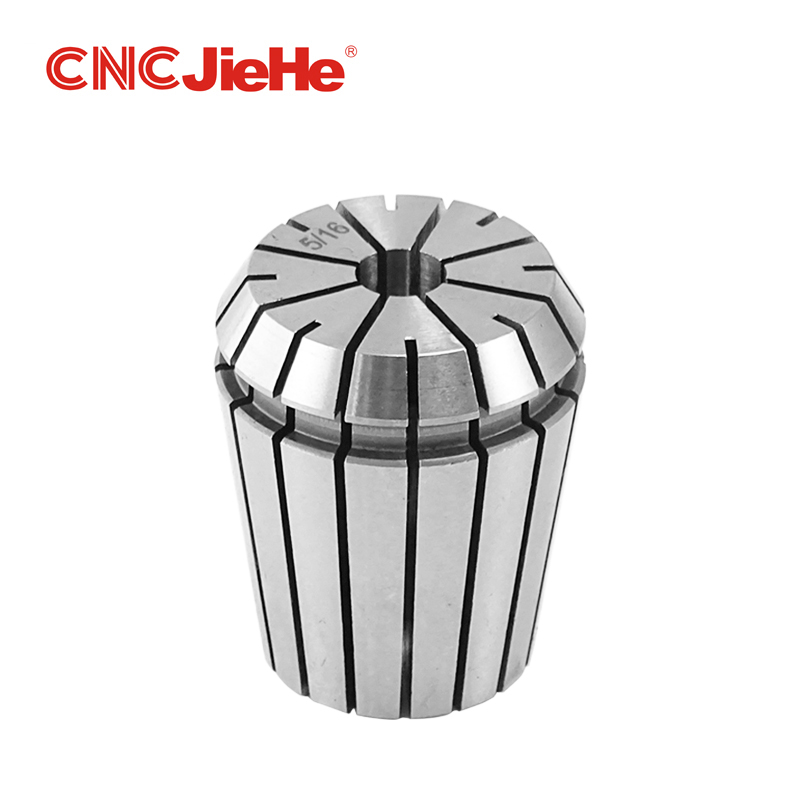

ER spring chuck (English) is made of high-quality spring steel (such as 65Mn and SUJ2) or stainless steel, which has both high hardness and toughness. Tempering after overall quenching, nickel plating or nitriding on the surface to improve wear resistance and rust prevention ability. The grinding accuracy of the inner hole reaches ±0.005mm, ensuring the concentricity of clamping. The clamping diameter range covers the commonly used British sizes (such as 1/16 ",1/8", 3/16 ",1/4", etc.), and supports step-by-step or continuous adjustment (depending on the model). Compatible with ER series collet nuts (such as ER-16, ER-20, ER-25, ER-32, ER-40, etc.) and suitable for spindle interfaces of different machine tools. Evenly distributed slits provide uniform clamping force and reduce tool eccentricity. Comply with DIN 6499 standard, and ensure reliable locking with machine tool spindle. It is matched with the spring chuck nut to support the rapid loading and unloading of tools and improve the processing efficiency.

Optional Accessories

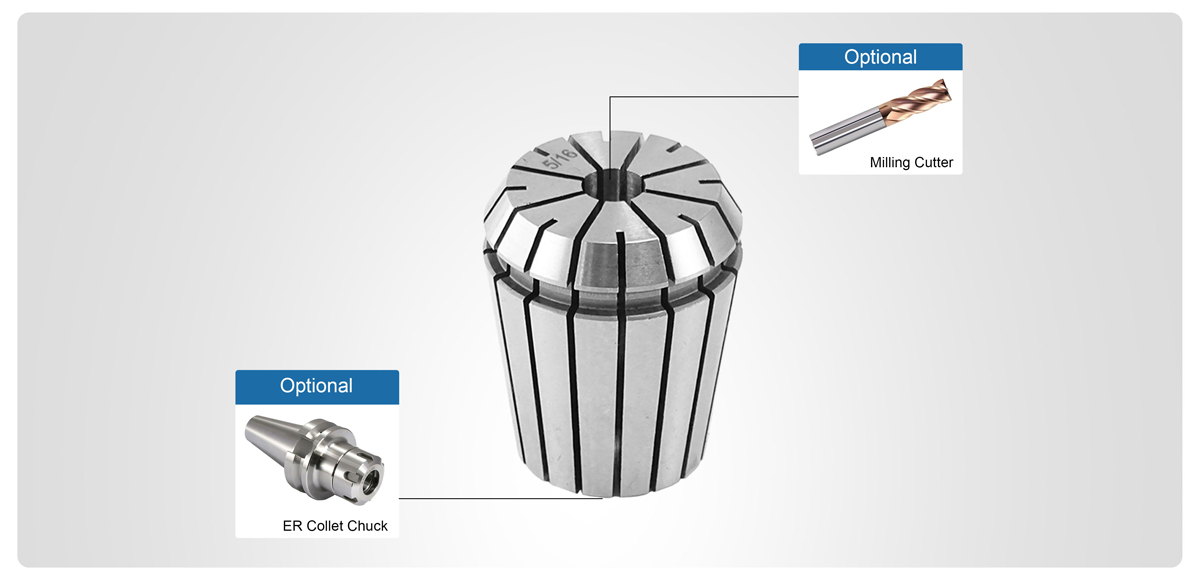

Our product offers a variety of optional configurations. Optional accessories such as ER Collet Chuck and Milling Cutter ，  we can meet users' diverse requirements regarding precision and stability.

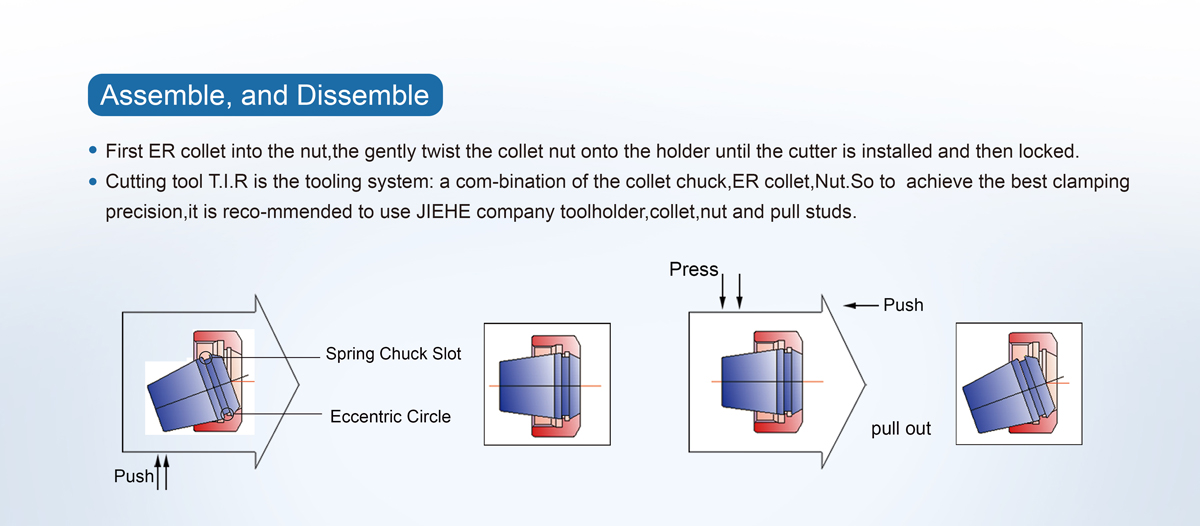

The installation steps of an ER Coolant Collet

Quality Inspection

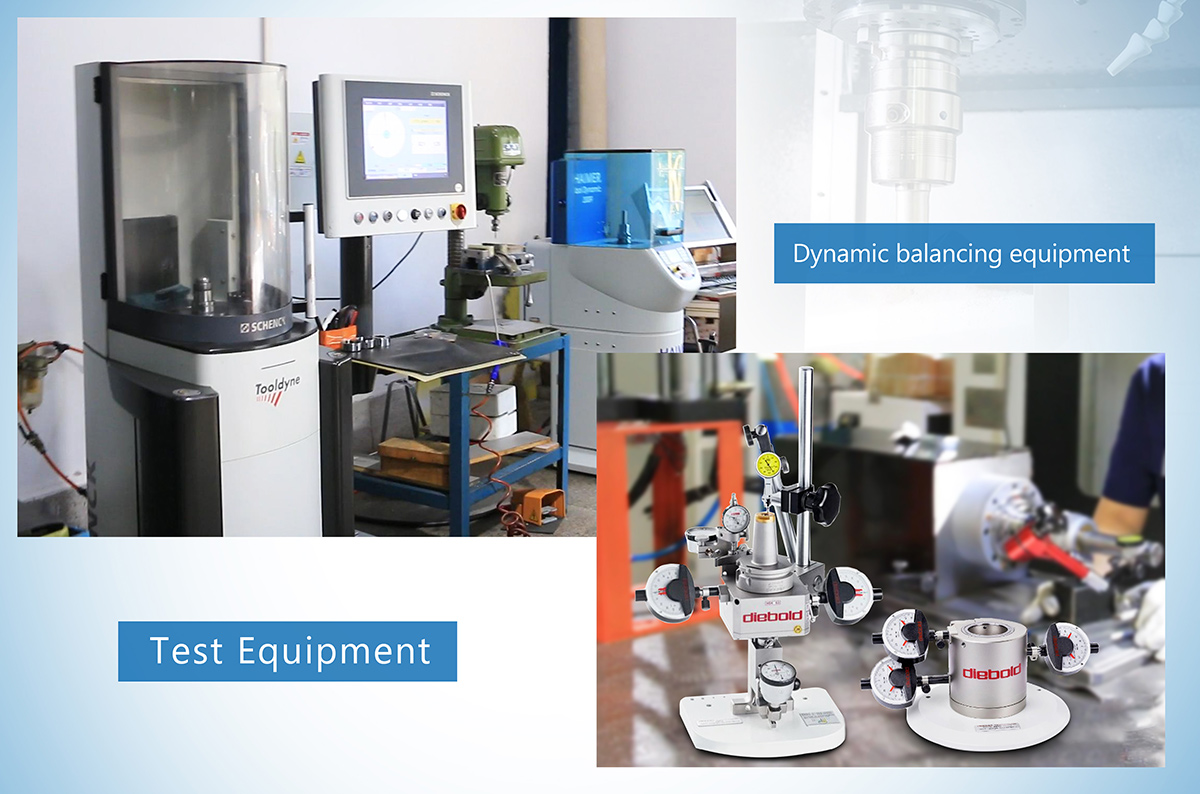

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

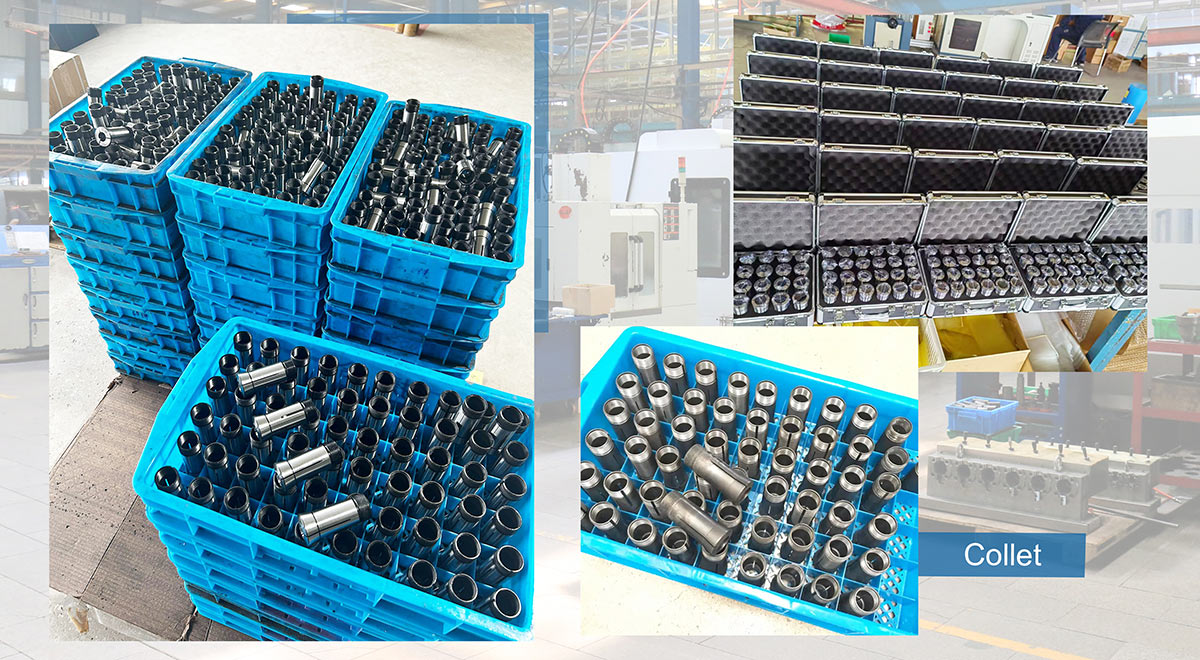

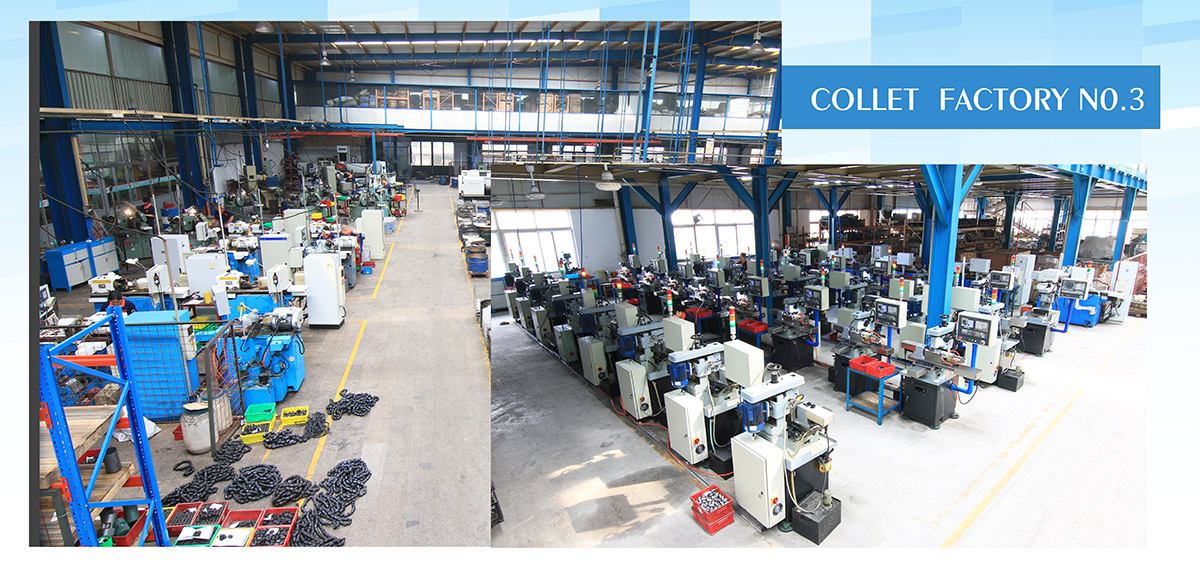

Photographs of Products in the Workshop

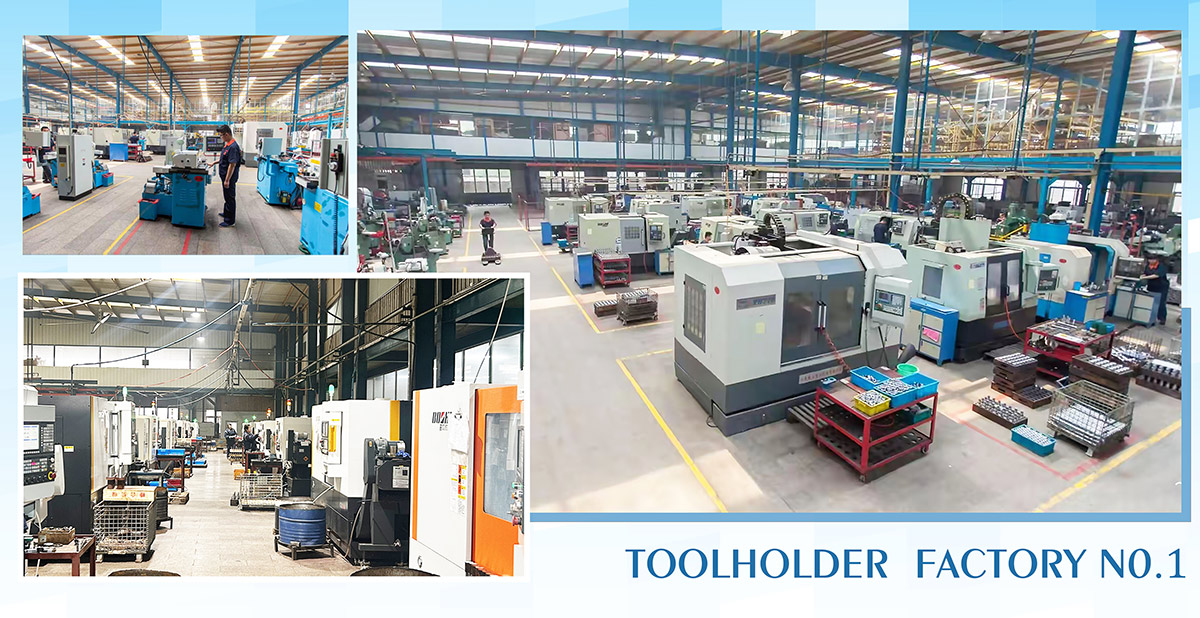

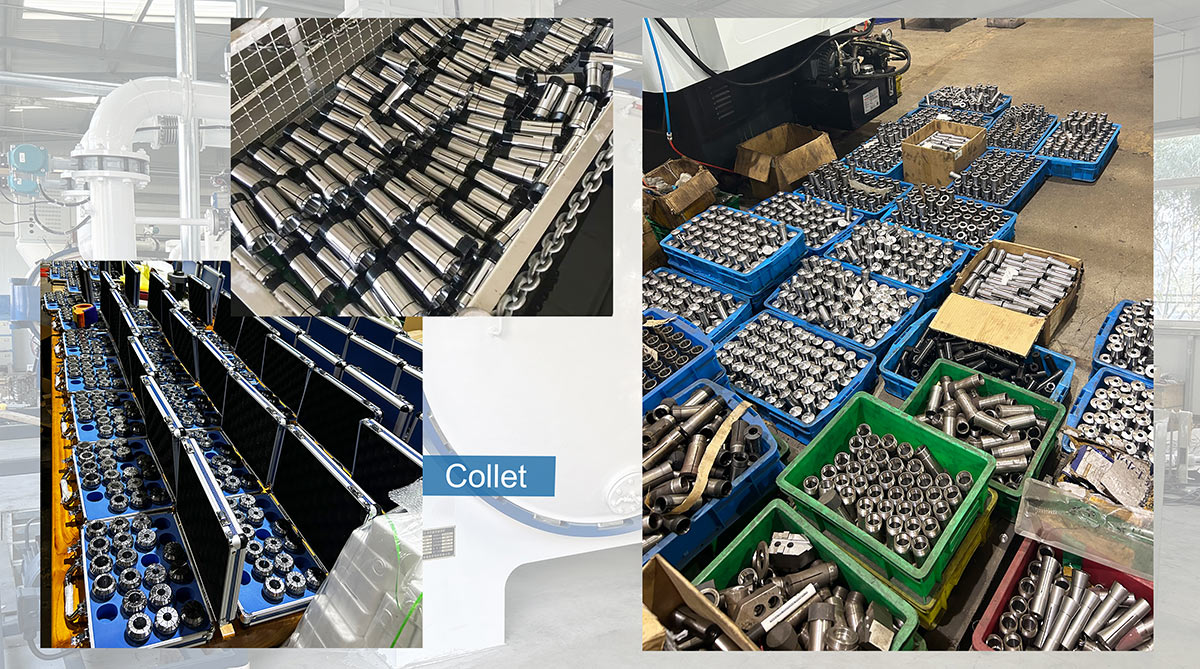

Our workshop maintains a robust inventory of semi-finished products, ensuring a steady supply and enabling us to meet tight deadlines with speed and efficiency. With streamlined production processes and a well-organized supply chain, we guarantee quick turnaround times without compromising on quality. Our experienced team and state-of-the-art facilities allow us to respond swiftly to customer demands, offering flexible solutions and fast delivery to keep your operations running smoothly.

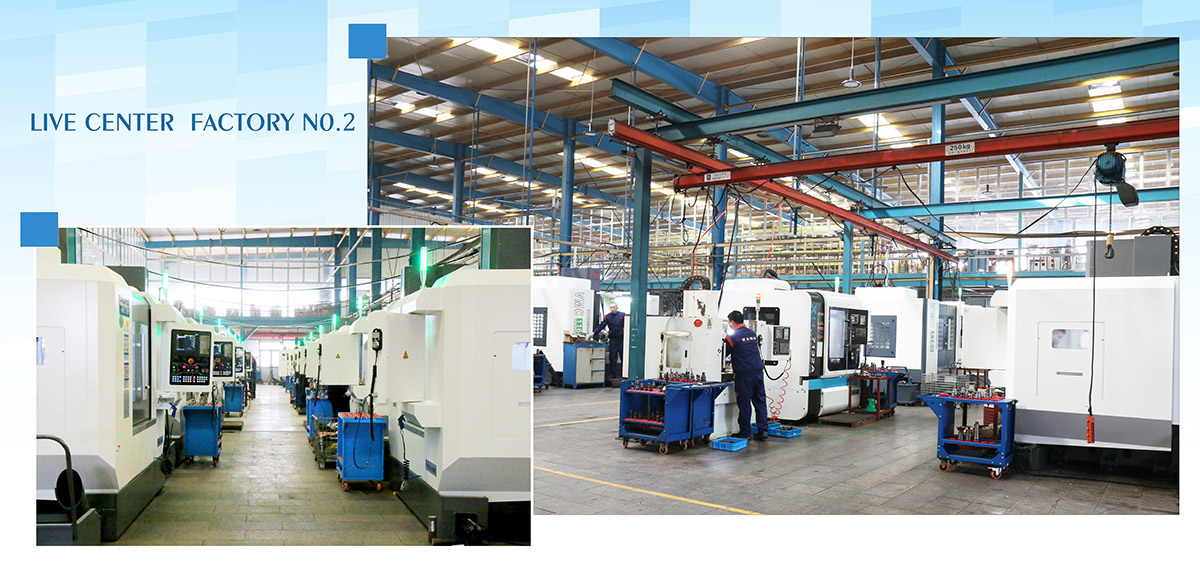

Factory Displayment
