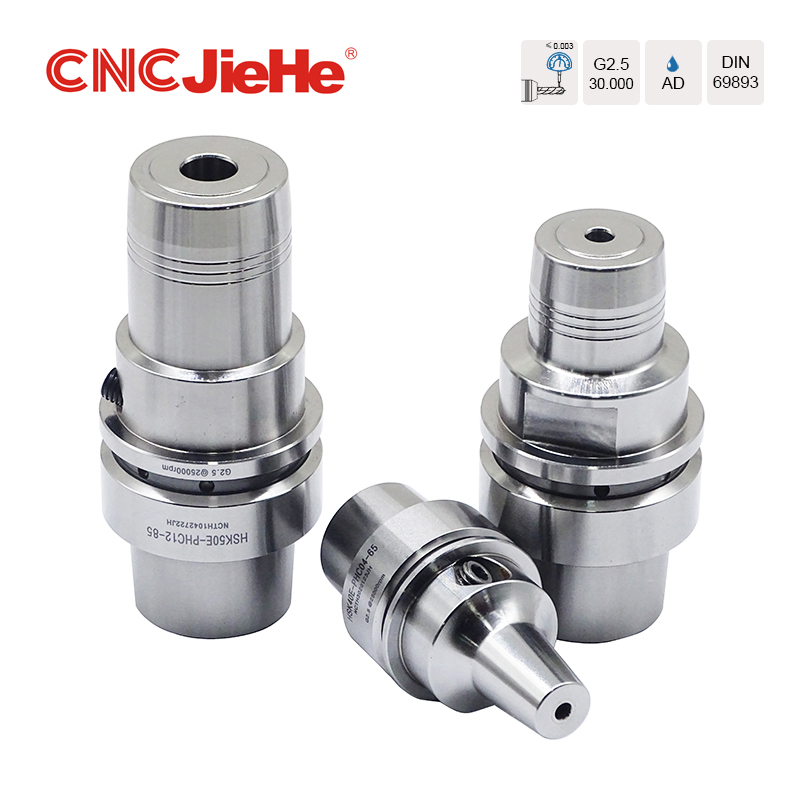

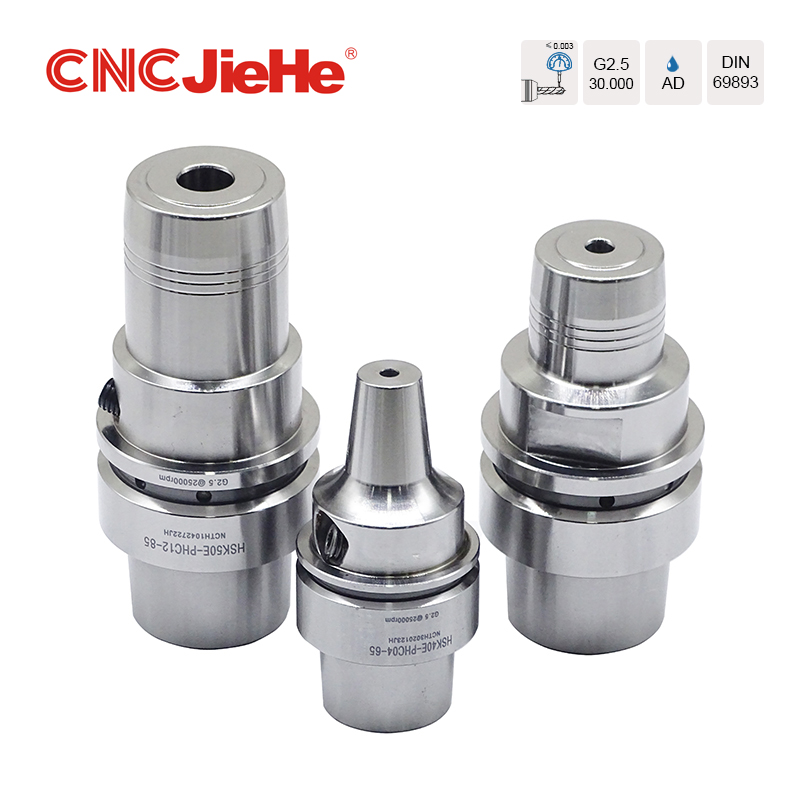

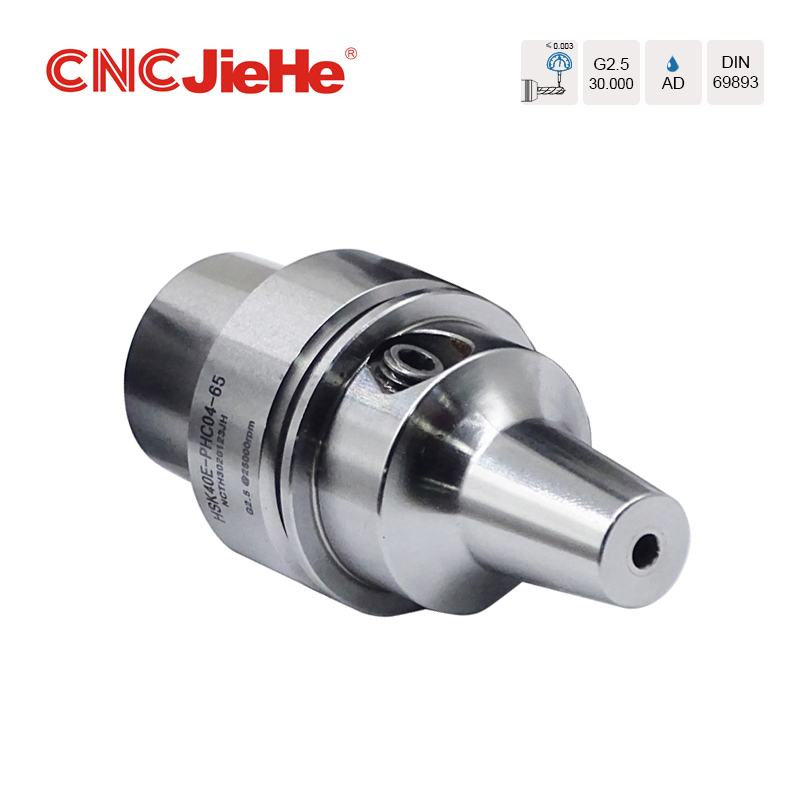

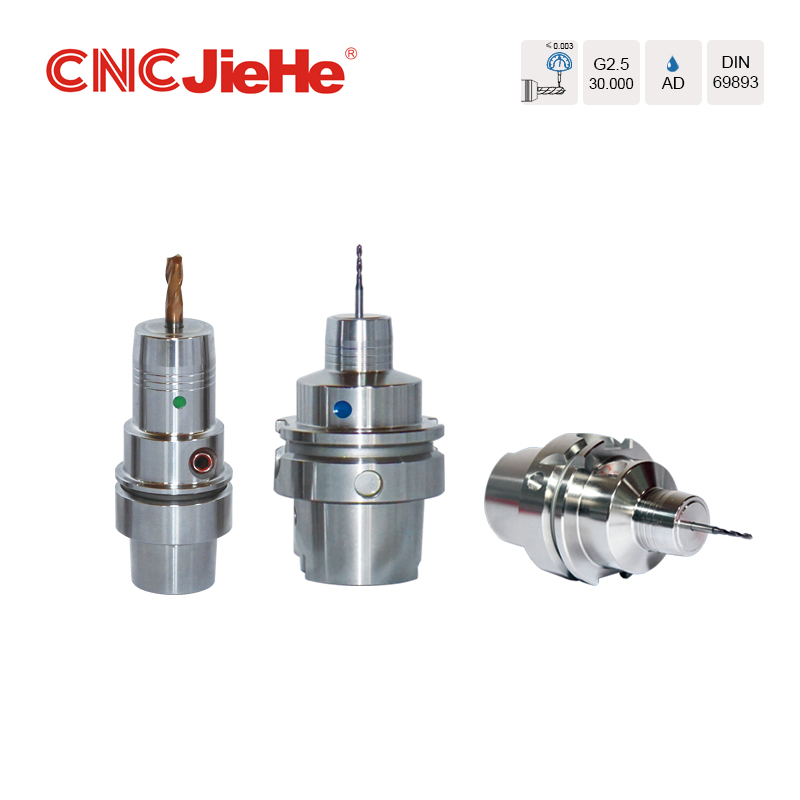

HSK32 40ES Hydraulic Chuck

Product Description

This HSK32-40ES hydraulic chuck is designed to provide extreme stability and precision for demanding machining environments. Manufactured from high quality materials, the precision hydraulic technology ensures that workpieces are held securely in place during machining, dramatically improving machining efficiency and quality. With automatic locking function, this hydraulic chuck can adapt to a variety of complex machining scenarios, widely used in CNC machine tools, automation equipment and other fields.

Product Schematic

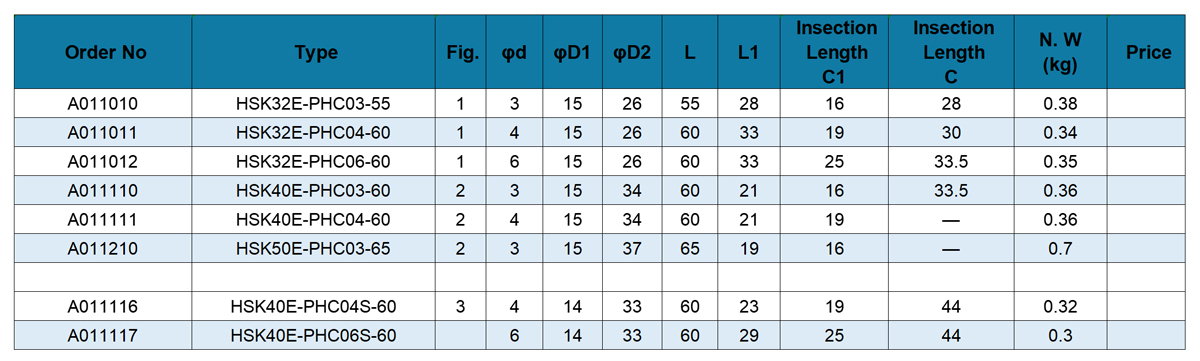

Product Parameters

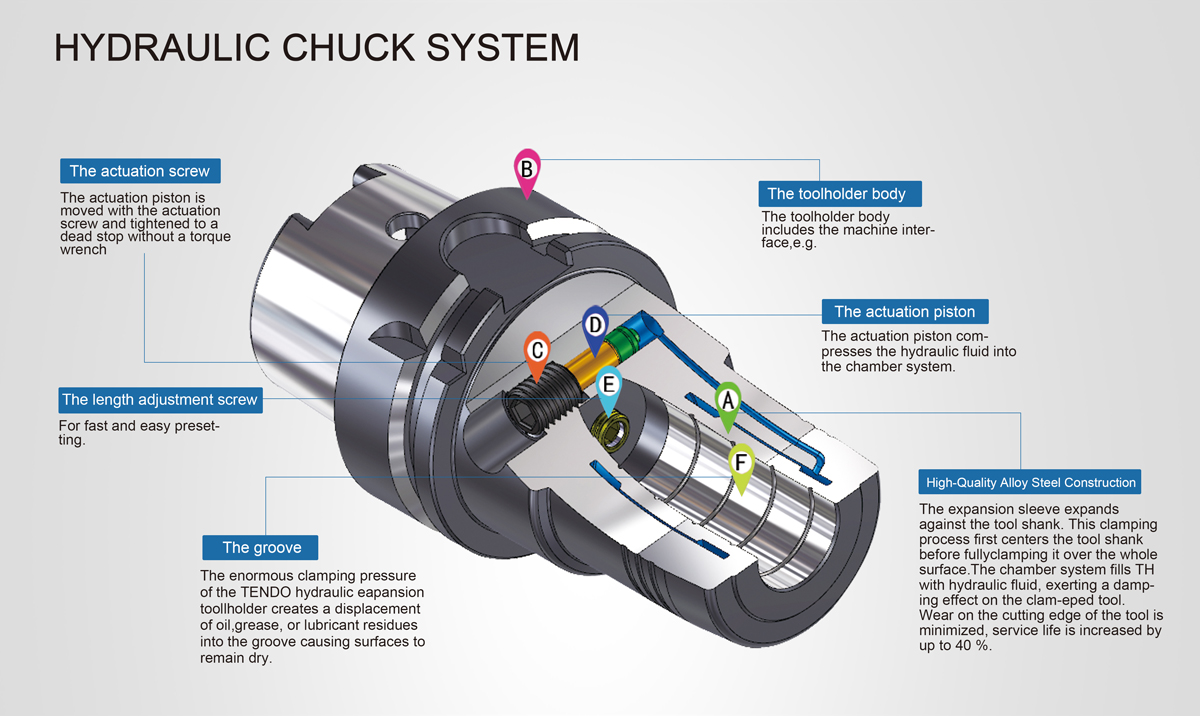

Product System

The design of the HSK32-40ES Hydraulic Chuck System not only ensures efficient tool clamping but also significantly reduces tool wear, extending tool life and enhancing stability and precision during the machining process. Through this schematic, users can better understand the working mechanism and functionality of the HSK32-40ES Hydraulic Chuck, which helps optimize installation, operation, and maintenance.

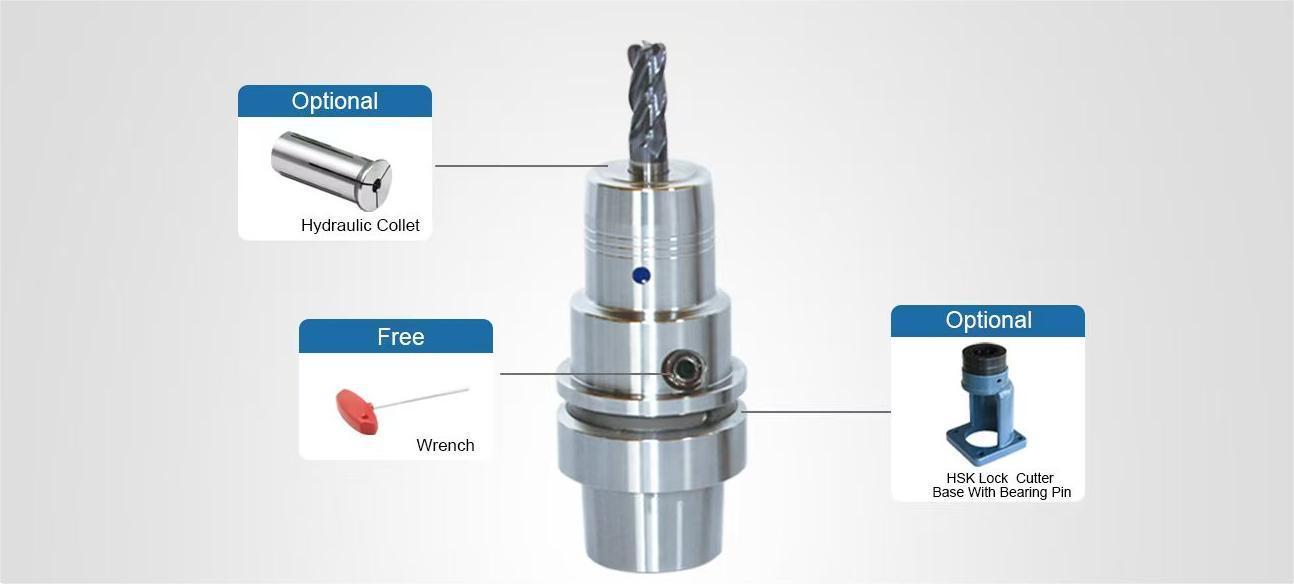

Optional Accessories

Our product offers a variety of optional configurations. Optional accessories such as the Hydraulic Collet and the HSK Lock Cutter Base With Bearing Pin can meet users' diverse requirements regarding precision and stability. Additionally, a wrench is provided to assist users with product installation and maintenance, enabling personalized product configurations.

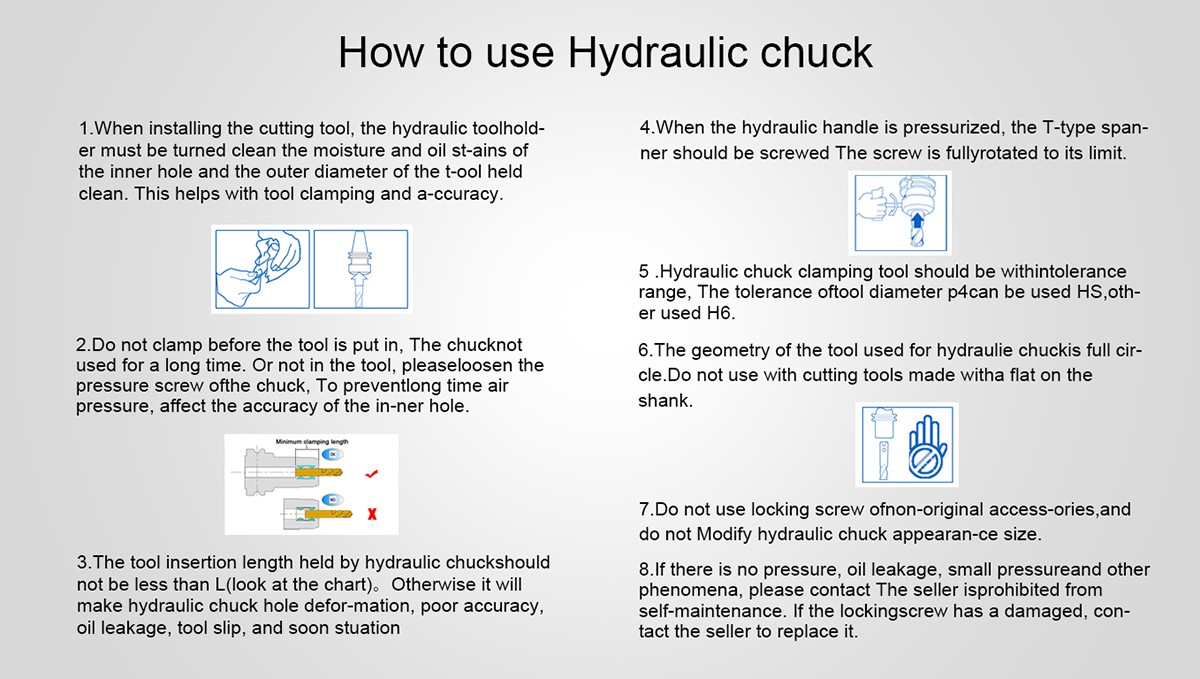

How to Use Hydraulic Chuck

To ensure optimal performance and longevity of the hydraulic chuck, always clean the inner hole and outer diameter of the tool holder before use, removing any moisture or oil. Avoid tightening the chuck before inserting the tool, and loosen the pressure screw if the chuck has been unused for an extended period. Ensure the tool insertion length meets the specified minimum to prevent issues like deformation or slippage. Always tighten the pressure screw fully using a T-handle wrench, and ensure the tool dimensions are within the specified tolerance range. Only use tools with a fully round shank and avoid modifying the chuck or using non-original parts. For any issues, such as oil leakage or low pressure, contact the seller for assistance instead of attempting repairs.

Why Choose JieHe

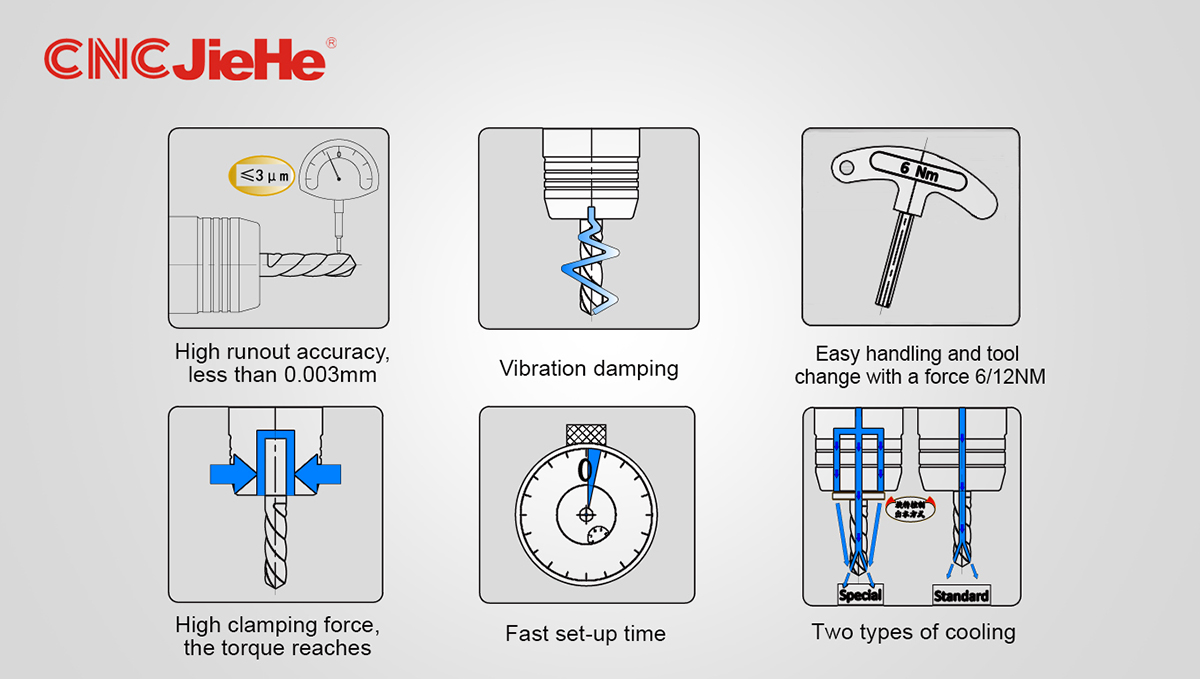

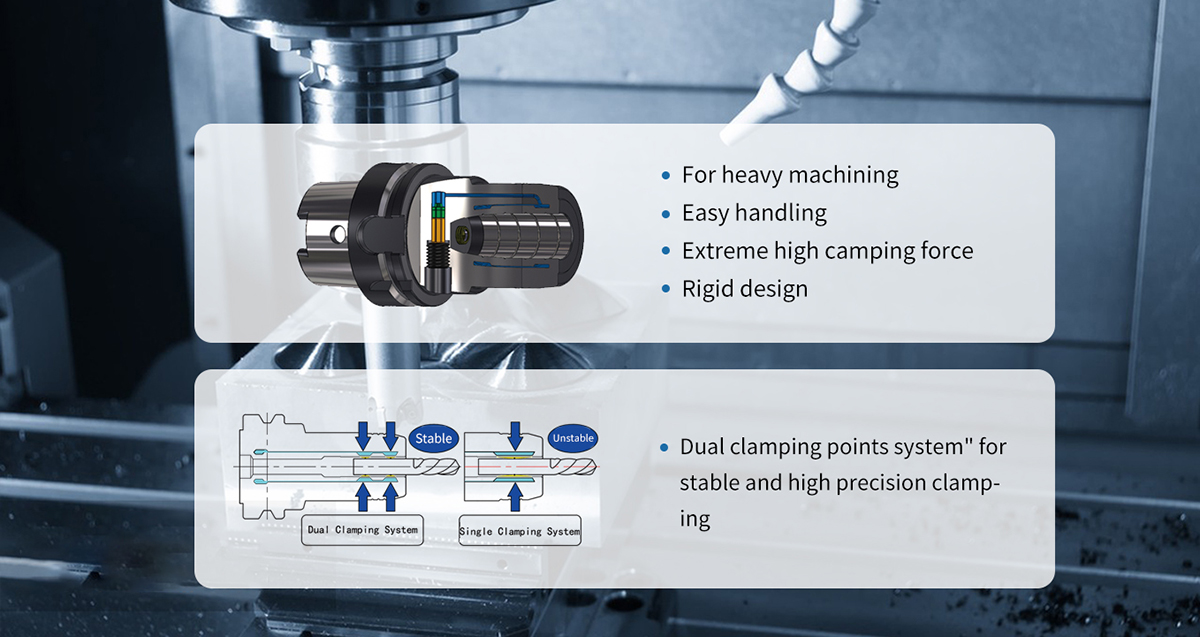

Choose CNC JieHe for precision, reliability, and efficiency. Our HSK32-40ES Hydraulic Chuck offers high clamping force, exceptional accuracy (less than 0.003mm runout), and a rigid design ideal for heavy machining. With quick setup times, easy handling, and a range of cooling options, it ensures optimal performance and tool longevity. Backed by our commitment to global standards (ISO, DIN, JIS-B, ANSI) and consistent precision through vacuum heat treatment, our products are built to meet your toughest machining needs. Trust us to deliver quality, precision, and unmatched support for your operations.

Quality Inspection

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

Photographs of Products in the Workshop

Our workshop maintains a robust inventory of semi-finished products, ensuring a steady supply and enabling us to meet tight deadlines with speed and efficiency. With streamlined production processes and a well-organized supply chain, we guarantee quick turnaround times without compromising on quality. Our experienced team and state-of-the-art facilities allow us to respond swiftly to customer demands, offering flexible solutions and fast delivery to keep your operations running smoothly.

Factory Displayment

Jining Jiehe Machinery Co., Ltd., established in 2000, is a national high-tech enterprise and a provincial-level technology-driven and innovative company. Specializing in CNC machine tool accessories, the company offers over 1,000 product varieties, with 60% of products exported. With over 200 CNC machines and a team of more than 100 employees, Jiehe has earned over 30 national patents and is recognized for its well-known trademarks such as CNCJiehe, Sun Moon Lake, and Goose. The company regularly participates in international exhibitions across Beijing, Shanghai, the U.S., Germany, Italy, and Tokyo, building a strong global market presence. By benchmarking top companies in Germany and Japan, Jiehe has achieved rapid development and established a comprehensive production and R&D base with subsidiaries in Jining, Shandong, Suzhou, and beyond.
